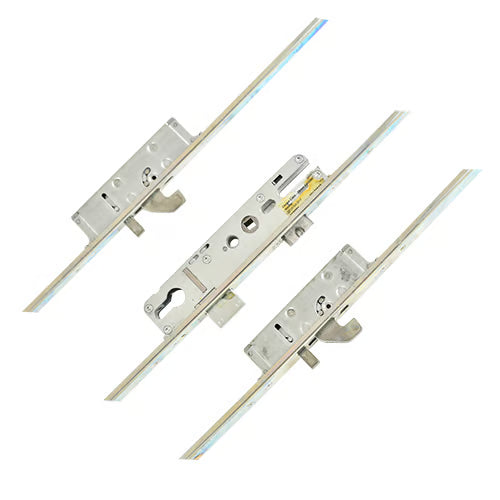

Lockmaster Latch Deadbolt 2 Hooks 2 Anti Lift Pins Lift Lever Bifold Multipoint Door Lock -Smarts ALUK version (top hook to spindle = 584mm)

Product Overview: Yale Lockmaster Bifold Multipoint Door Lock

The Yale Lockmaster Bifold multipoint door lock is designed for enhanced security and functionality in aluminium bifold doors. This lock features a robust configuration with 2 hooks, 1 deadbolt, 1 latch, and 2 anti-lift bolts, ensuring maximum protection against unauthorized access.

Key Features:

• Compatibility: Commonly fitted to aluminium bifold doors from manufacturers like Aluk and Smarts.

• Design: The lock includes a pair of hooks equipped with anti-lift pins and a 28mm backset, tailored for the slim profile of aluminium bifold doors.

• Identification: Look for the Yale logo or the Lockmaster logo stamped on the lock for authenticity.

• Versions Available:

  • Standard Version: Features the top hook positioned 584mm from the top spindle (Part Number: LM2H2824URSTD).
  • Long Version: Extended design with the top hook at 720mm from the top spindle (Part Number: LM2H2824URLONG).

• Faceplate Dimensions: The lock comes with a distinctive 24mm x 7mm U-shaped faceplate, specifically designed to fit aluminium profiles.

• Unique Gearbox: The Yale Lockmaster bifold gearbox is distinct with a 28mm backset, differing from standard Lockmaster gearboxes (35mm and 45mm).

• Compact Size: Measuring 202mm high by 45mm wide, these gearboxes are smaller than regular Lockmaster gearboxes and feature bolt hole piercing for easy handle fitment.

• Material Composition: Constructed from galvanised mild steel, with a cast zinc alloy deadbolt and latch for durability.

Installation Notes:

• When measuring the backset, account for an additional 2-3mm for the faceplate, meaning a 28mm backset gearbox will measure approximately 25mm when not attached to the strip.

• The anti-lift pins enhance security and require special keeps due to their proximity to the hook bolt.

Operation Instructions:

• To Lock the Door:

  1. Lift the handle upwards to engage the locking points.
  2. Secure the locking points and main deadbolt (if applicable) by turning the key.

• To Unlock the Door:

  1. Turn the key to unlock the system.
  2. Push the handle downwards to disengage the locking points and retract the latch.

Testing Standards:

• The lock is tested to PAS24:2016 standards for security.
• Corrosion resistance is tested to BS EN 1670:2007 Grade 4 for 240 hours.
• Endurance tested for up to 100,000 cycles.

Additional Products:

We offer a range of associated products for the Lockmaster Bifold multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything you need for a complete installation.

Product Specifications:

• Manufacturer: Lockmaster
• Backset: Select from drop-down options
• Centres PZ: 92mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down options
• Spindle: Single 8mm
• Handing: Non-Handed
• Distance Between Inner Locking: 1226mm
• Height: 2200mm
• Top Hook to Spindle: 584mm
• Bottom Hook to Spindle: 642mm
• Door Material: UPVC, Aluminium

This comprehensive overview ensures you have all the necessary information to choose and install the Yale Lockmaster Bifold multipoint door lock effectively.
