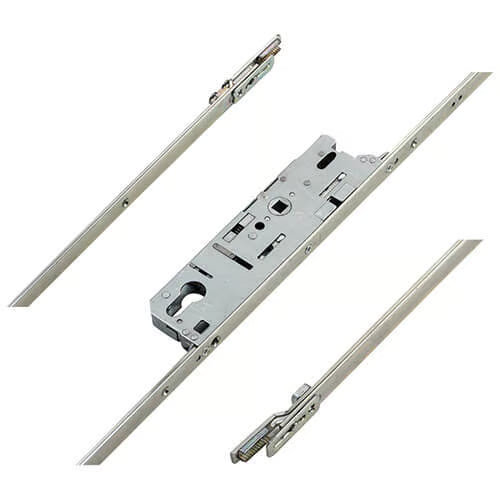

Product Overview: Fuhr Passive Multipoint Door Lock
The Fuhr Passive multipoint door lock is designed specifically for the passive leaf of French doors, ensuring security and ease of use. This lock is versatile, non-handed, and can be installed on either left or right-hand doors.
Key Features:
-
Central Locking Mechanism: The lock operates without a latch or deadbolt, connecting to shoot bolts that secure the passive door leaf when the handle is lifted.
-
Lift Lever Operation: Engaging the lock is simple; just lift the handle to activate the locking points.
-
Versatile Applications: Suitable for various door materials including UPVC, aluminium, timber, and composite.
-
Product Variants: Available in different configurations, including a main lock and an espag with a separate locking handle (part DPMG01S).
Operation Instructions:
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications:
- Manufacturer: Fuhr
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 92mm (measurement guide available)
- Faceplate: Selectable (refer to measurement guide)
- Spindle Size: 8mm
- Main Gearbox: Passive lock
- Operation: Selectable (refer to options)
- Spindle: Single 8mm
- Handing: Non-handed
- Height: 920mm
- Compatible Door Materials: UPVC, Aluminium, Timber, Composite
Additional Products:
We offer a comprehensive range of associated products for the Fuhr Passive multipoint door locks, including keeps, spindles, handles, and various accessories to enhance your door security system.
