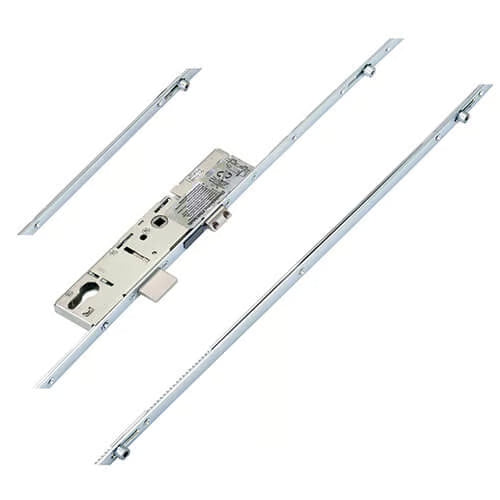

Product Overview: ERA Deadbolt Multipoint Door Lock
The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design that includes 4 rollers, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK market, known for its versatility and ease of installation.
Key Features:
-
Versatile Branding: ERA locks may be stamped with various brands such as Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego, making identification straightforward yet requiring attention to detail.
-
Design Compatibility: Originally designed to replace GU, Lockmaster, and Winkhaus locks, these locks come in two options, ensuring compatibility without the need for new routing positions.
-
Distinctive Gearbox: The ERA multipoint door lock gearbox is uniquely designed with a square shape and no corner cutouts, measuring 221mm in length. The backset options available are 30mm, 35mm, or 45mm, all maintaining the same dimensions.
-
Locking Mechanism: The lock features a split spindle mechanism, simplifying replacements by focusing on one locking function. This excludes SureFire locks and specific parts that operate differently.
-
Roller Functionality: The rollers serve to compress and secure the door against the frame, aiding in weather sealing and preventing warping. They are adjustable by +/- 1mm for optimal performance.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Specifications:
- Manufacturer: ERA
- Backset: Available in 30mm, 35mm, or 45mm
- Centres PZ: 92mm
- Spindle Size: 8mm
- Rollers: 4
- Deadbolts: 1
- Latch: 1
- Operation: Split spindle
- Handing: Non-handed
- Material Compatibility: Suitable for UPVC and Aluminium doors
Additional Information:
- Corrosion Resistance: Meets BS EN 1670:2007 Grade 4 standards (240 hours).
- Endurance Testing: Designed to withstand 50,000 cycles.
- Security Compliance: Meets PAS24:2012 requirements for enhanced security.
For any additional components such as keeps, spindles, handles, and accessories, we offer a comprehensive range to complement your ERA Deadbolt multipoint door lock.
Latch Reversal: To reverse the latch, simply undo the screws, reverse the latch, reinsert, and replace the screws.
This lock is ideal for both UPVC and aluminium doors, providing a secure and reliable solution for your locking needs.
