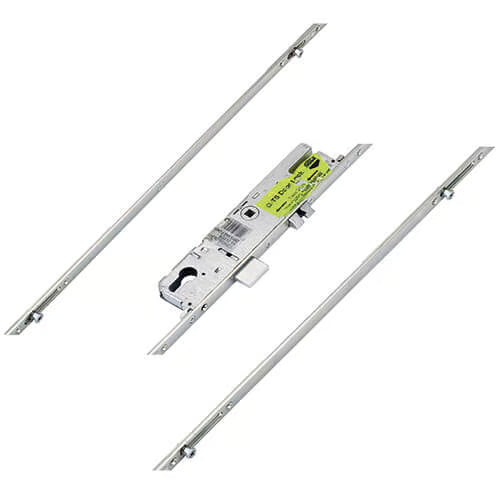

Maco G-TS Multipoint Door Lock Overview
The Maco G-TS multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 4 rollers, 1 deadbolt, and 1 latch. This lock is ideal for both UPVC and aluminium doors, ensuring a reliable locking mechanism for your home or business.
Key Features:
-
Compatibility: While most G-TS locks have been discontinued, select models with 28mm or 35mm backsets are still available, allowing for easy replacements with minimal adjustments.
-
Gearbox Variations: The G-TS lock gearboxes have evolved over the years, making it crucial to choose the correct version as they are not interchangeable. The latest models, produced since 2010, feature distinct screw fixing positions.
-
Identification: To differentiate between the old and new versions, look for the square latch reversal button next to the latch on the newer models.
-
Dimensions: The gearboxes measure 228mm in height, with a width of backset + 18mm. The centres (PZ) are set at 92mm, while the latch and deadbolt heights are 29mm and 30mm, respectively.
-
Roller Functionality: The i.S. cams, made from hardened steel, serve to compress the door against the frame, aiding in weather sealing and preventing warping. These rollers are adjustable by 1mm for optimal performance.
Operation Instructions:
-
To Lock:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt by turning the key.
-
To Unlock:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications:
- Manufacturer: Maco
- Backset: Available in 28mm or 35mm (select from drop-down)
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Rollers: 4
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 870mm
- Distance Between Outer Locking: 1635mm
- Height: 2400mm
- Top Roller to Spindle: 795mm
- Bottom Roller to Spindle: 840mm
- Door Material: UPVC, Aluminium
Additional Products:
We offer a comprehensive range of associated products for the Maco G-TS multipoint door locks, including keeps, spindles, handles, and various accessories to enhance your locking system.
For any further assistance or to explore our product range, feel free to reach out!
