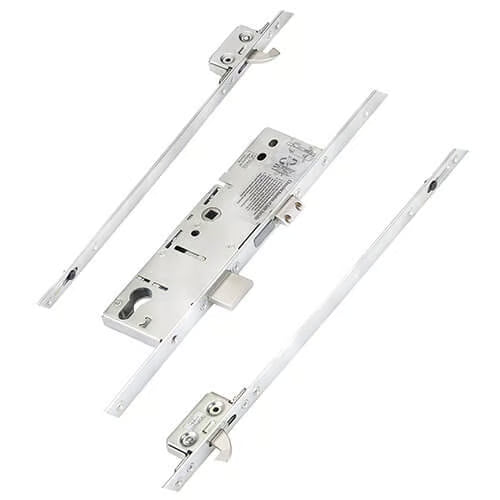

Latch Deadbolt 2 Small Hooks Split Spindle Multipoint Door Lock - Option 3 (top hook to spindle = 680mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility across various door types.

Identifying Your ERA Lock

Recognizing an ERA multipoint door lock can be straightforward, but be cautious of rebranded versions. Many door and window companies use ERA locks under different names, such as Surelock, Saracen, and others. Look for the ERA logo on the faceplate, but remember that some brands may have altered the logo or color of the holdback snib.

Key Features

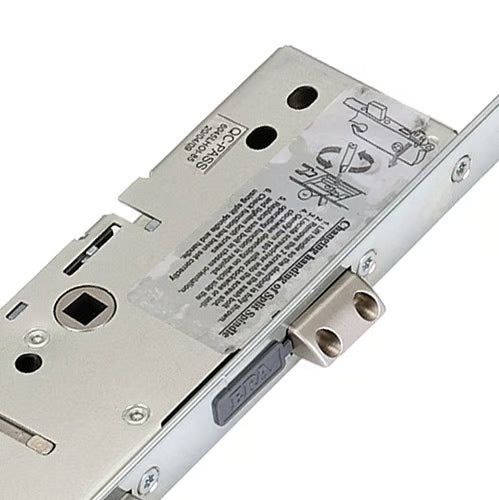

• Gearbox Design: The distinctive square design of the ERA gearbox, measuring 221mm in length, ensures compatibility across various models. The backset options include 30mm, 35mm, or 45mm, with all gearboxes sharing the same dimensions.

• Locking Mechanism: The split spindle mechanism simplifies replacements, focusing on one locking function. Note that certain models, like SureFire locks, operate differently.

• Interchangeability: Most ERA gearboxes can be interchanged, allowing customization based on client needs. If a hook lock is required instead of a deadbolt, we can build the lock to order.

Security Features

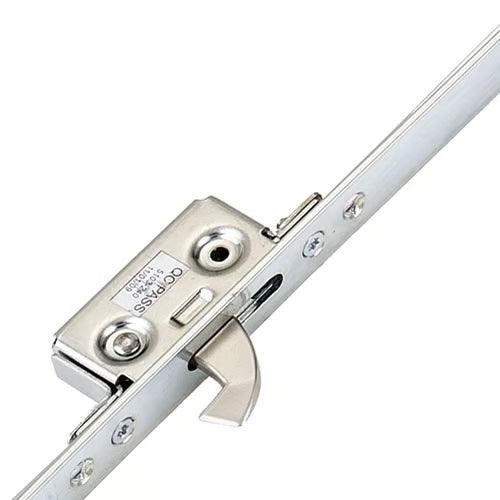

ERA multipoint locks come with two hook locking arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks are bi-directional, providing superior security by throwing upwards and downwards.

Deadbolt Specifications

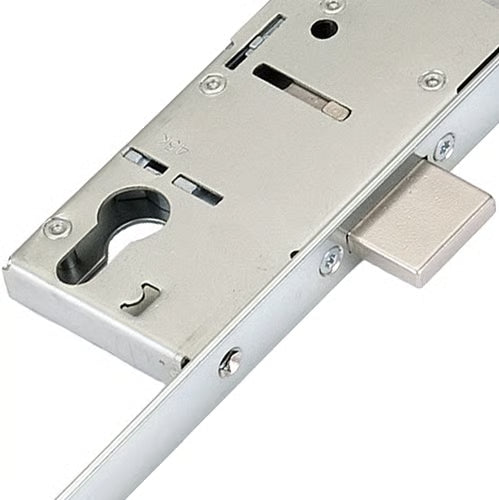

The deadbolt, referred to as a linear bolt, features an 18mm throw and is designed to pull the door snugly against the frame. This lock is ideal for timber and composite doors, ensuring durability and performance.

Operation Instructions

To lock the door:

1. Lift the handle to engage the locking points.
2. Turn the key to secure the deadbolt and locking points.

To unlock the door:

1. Turn the key to disengage the system.
2. Push the handle down to retract the latch.

Compliance and Testing

The ERA Deadbolt multipoint door lock meets BS EN 1670:2007 Grade 4 corrosion resistance standards and has been endurance tested for 50,000 cycles. It is designed to comply with PAS24:2012 requirements, ensuring high security for your door set.

Additional Products

We offer a range of associated products for the ERA Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, making it easy to find everything you need for installation or replacement.

This lock is suitable for various applications, including UPVC, aluminum, timber, and composite doors, providing flexibility and peace of mind for your security needs.

Product Specification

Manufacturer: ERA

Backset: Select from drop-down
How do I measure the backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring a proper fit.

Centres PZ: 92mm
How do I measure the centres?
To measure the centres, find the distance between the center of the keyhole and the center of the handle hole. This measurement is essential for compatibility with your door hardware.

Faceplate: Select from drop-down
How do I measure the faceplate?
Measure the width and height of the faceplate on your existing lock. This will help you select the correct faceplate size for your new lock.

Spindle Size: 8mm

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down
What is the operation?
The operation refers to how the lock functions, including how to engage and disengage the locking mechanism. Ensure you understand the operation type for ease of use.

Spindle: Split 8mm

Handing: Non handed

Distance Between Inner Locking: 1480mm

Height: 2250mm

Top Hook to Spindle: 680mm

Bottom Hook to Spindle: 700mm

Door Material: UPVC, Aluminium, Timber, Composite

This comprehensive specification ensures that you have all the necessary details to select the right ERA Deadbolt multipoint door lock for your needs.
