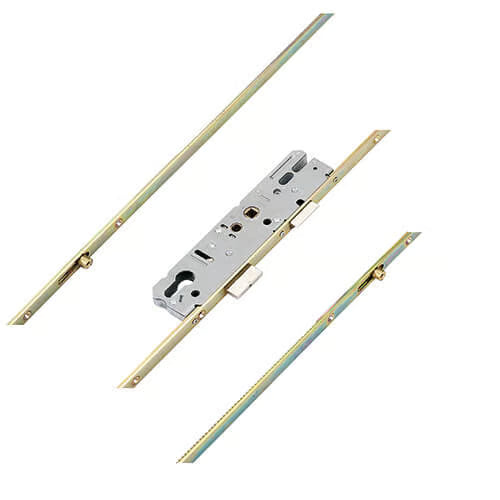

Latch Deadbolt 2 Rollers Lift Lever Multipoint Door Lock

Product Overview: KFV Lever Multipoint Door Lock

The KFV Lever multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 rollers, 1 deadbolt, and 1 latch. This lock is ideal for both UPVC and aluminium doors, ensuring a reliable locking mechanism for your home or business.

Key Features:

• Lock Configuration:

  • 2 Rollers for compression and support
  • 1 Deadbolt for added security
  • 1 Latch for easy operation

• Identification:

  • Look for the KFV logo on newer models.
  • Early models may have a yellow passivated faceplate and dark grey gearboxes, while newer versions feature shiny silver faceplates and light grey gearboxes.

• Modular Design:

  • New KFV locks are modular, allowing for easier replacements without changing routing positions. This may require minor adjustments to the door for proper fit.

• Gearbox Specifications:

  • Single spindle with 92mm centres
  • Overall height: 210mm
  • Bolt throw: 21mm
  • Distance from latch to deadbolt: 56mm
  • Distance from spindle to top of case: 85mm

• Rivet and Screw Attachment:

  • Older models use 1/8" rivets for gearbox attachment, while newer models utilize screws, aiding in identification.

Operation Instructions:

• To Lock the Door:

  1. Lift the handle to engage the locking points.
  2. Turn the key to secure the deadbolt and locking points.

• To Unlock the Door:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points and retract the latch.

Latch Reversal Instructions: Depending on the manufacturing date, the latch can be reversed by either:

• Pushing in the latch and undoing the screw at the back of the lock case, or
• Pushing in the latch and undoing the screw on the side of the lock case.

Product Specifications:

• Manufacturer: KFV
• Backset: Select from drop-down options
• Centres PZ: 92mm
• Spindle Size: 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 930mm
• Height: 1630mm
• Top Roller to Spindle: 400mm
• Bottom Roller to Spindle: 530mm
• Door Material Compatibility: UPVC, Aluminium

Associated Products: We offer a range of accessories for KFV Lever multipoint door locks, including keeps, spindles, handles, and more to ensure you have everything you need for installation and maintenance.

For any further assistance or to explore our product range, feel free to reach out!
