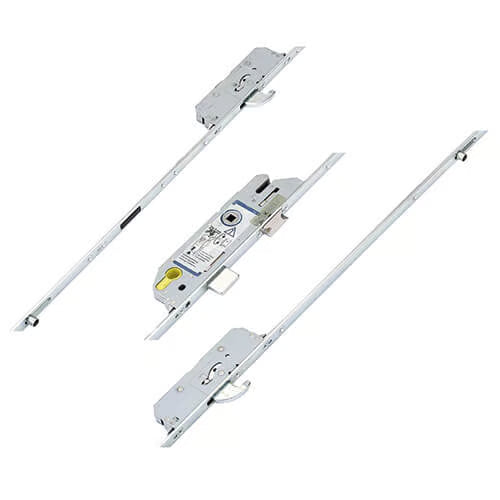

Latch Deadbolt 2 Rollers 2 Hooks Key Wind Operated Multipoint Door Lock

Product Overview: Fuhr 855 - Key Wind Multipoint Door Lock

The Fuhr 855 multipoint door lock is designed for versatility and security, featuring a robust configuration that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is suitable for all door types, making it an ideal choice for both UPVC and aluminum doors.

Key Features:

• Operation: Key wind mechanism for secure locking and unlocking.

• Locking Points: Engages 2 hooks and 2 rollers, providing enhanced security.

• Deadbolt Functionality: The deadbolt throws 20mm for maximum security, with variations for specific backset sizes.

• Gearbox Design: Distinctive gearbox design for easy identification, featuring a triangular shape at the top.

• Latch Operation: The latch can be operated from the inside using a lever handle, while a fixed pad is used externally.

Installation and Compatibility:

The Fuhr 855 lock is designed for easy installation and compatibility with various door types. When replacing an existing lock, be mindful of potential differences in latch height between older and newer models. The lock's gearbox is secured with three screws, ensuring a stable fit.

Specifications:

• Manufacturer: Fuhr
• Backset: Selectable via drop-down menu
• Centres PZ: 92mm
• Faceplate: Selectable via drop-down menu
• Spindle Size: 8mm
• Handing: Non-handed
• Dimensions:
  • Height: 2170mm
  • Distance Between Inner Locking: 700mm
  • Distance Between Outer Locking: 1490mm
  • Top Hook to Spindle: 730mm
  • Bottom Hook to Spindle: 760mm
  • Top Roller to Spindle: 355mm
  • Bottom Roller to Spindle: 345mm

Operation Instructions:

To lock the door:

1. Close the door to automatically engage the latch.
2. Turn the key to engage the locking points.

To unlock the door:

1. Turn the key to retract the locking points.
2. A further quarter turn will retract the latch.

Additional Products:

We offer a range of associated products for the Fuhr 855 lock, including keeps, spindles, handles, and other accessories to enhance your door security system.

For any inquiries or assistance with installation, feel free to reach out to our support team.
