Style Latch Deadbolt 4 Roller Multipoint Door Lock

Accado Style Multipoint Door Lock Overview

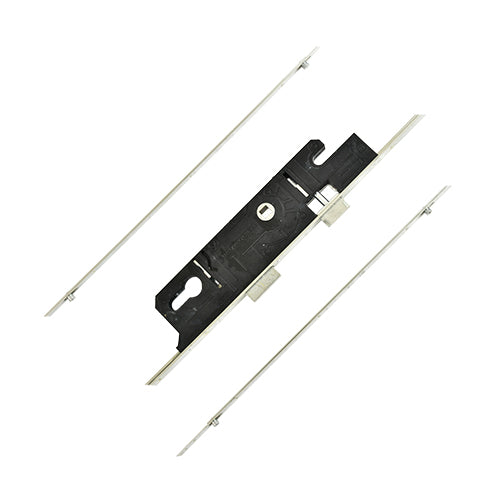

The Accado Style multipoint door lock is a robust security solution featuring a combination of 4 rollers, 1 deadbolt, and 1 latch. Manufactured by the Turkish company Accado, these locks were primarily imported into the UK for installation on PVCu doors sold by B&Q, although they are now less common in the market.

Key Features

• Identification: Easily recognized by its 85mm PZ (centres) measurement and unique 4 roller configuration. Look for the latch reversal instruction sticker on the side of the lock case, and some variants may have "Accado" stamped on the faceplate.

• Global Availability: While multipoint locks with an 85mm PZ are rare in the UK, they are prevalent across Europe and other regions. This lock is an excellent replacement option for existing 85mm centre locks, even those not branded by Accado.

• Backset Options: Sold in Turkey with backsets of 25mm, 28mm, and 35mm, the version fitted to UK PVCu doors typically has a 35mm backset and a 16mm faceplate. The rollers are strategically positioned at 308mm and 824mm above the spindle, and 300mm and 806mm below.

Replacement Considerations

If the handles on your door are damaged, sourcing replacements can be challenging. In such cases, it is advisable to consider swapping the lock for a 92mm PZ version, which may allow for easier handle replacement by repositioning the roller keeps.

Gearbox Specifications

Accado gearboxes are characterized by their 85mm centre measurement. Newer models feature a cut-out groove for handle fixings, while older versions have a curved top and are no longer available but can be interchanged with newer gearboxes. Some versions also include a black plastic cover on one side.

• Dimensions: Gearboxes measure 225mm high by 51mm wide, exclusively available with a 35mm backset when fitted to B&Q doors.

• Deadbolt and Latch: The deadbolt measures 31mm high and projects 13mm when engaged, while the latch is 25mm high.

Operation Instructions

To operate the lock:

• Locking: Lift the handle to engage the locking points, then turn the key to secure the deadbolt and locking points.

• Unlocking: Turn the key to unlock, then push the handle down to disengage the locking points and retract the latch.

Latch Reversal Process

To reverse the latch:

1. Locate the small screw behind the latch on the reverse side of the lock.
2. Unscrew until the latch moves.
3. Push the latch back into the lock body.
4. Rotate the latch and allow it to spring back.
5. Re-tighten the screw to finalize the reversal.

Associated Products

We offer a variety of associated products for the Accado Style multipoint door locks, including keeps, spindles, handles, and other accessories, ensuring you have everything needed for maintenance or replacement.

This lock is suitable for both UPVC and aluminium doors, providing versatility and security for various applications.

Product Specification

Manufacturer: Accado

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Rollers: 4

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Single 8mm

Handing: Non handed

Distance Between Inner Locking: 608mm

Distance Between Outer Locking: 1630mm

Height: 1800mm

Top Roller to Spindle: 824mm

Bottom Roller to Spindle: 806mm

Door Material: UPVC, Aluminium

For accurate measurements, please refer to the following guidelines:

1. Measuring the Backset: Measure from the edge of the door to the center of the keyhole or cylinder. This will give you the backset measurement.

2. Measuring the Centres (PZ): Measure the distance between the center of the keyhole and the center of the handle spindle. This is crucial for ensuring compatibility with your door hardware.

3. Measuring the Faceplate: Measure the width and length of the faceplate on the lock. This will help you select the correct faceplate size from the drop-down options.

4. Operation: The operation of the lock can vary; please select the appropriate option from the drop-down based on your specific requirements.

This comprehensive specification ensures that you have all the necessary details for selecting and installing the Accado multipoint door lock effectively.
