Description

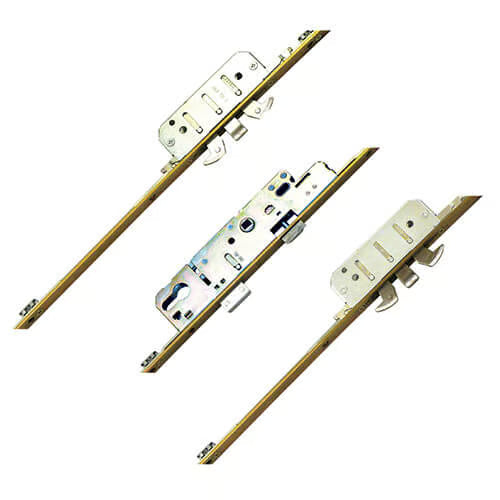

The AGB multipoint door lock is a robust and versatile locking solution, featuring a sophisticated design that enhances security for various door types. With its combination of 4 hooks, 3 deadbolts, and 1 latch, this lock ensures maximum protection against unauthorized access.
AGB locks, crafted in Italy, stand out in the UK market due to their unique locking configurations. The Poseidon model, the only one currently available, showcases an innovative hook and deadbolt arrangement that resembles a trident. This design not only adds to the aesthetic appeal but also provides superior locking strength, with each hook operating in opposite directions, separated by a deadbolt.
Identifying AGB UPVC door locks is straightforward, thanks to the distinctive logo on the faceplate and the unique Poseidon locking mechanism. These locks are specifically designed with a 35mm backset and a 16mm faceplate, and they operate using a lift lever mechanism with a single spindle.
Operation Instructions
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Features
We offer a comprehensive range of associated products for AGB multipoint door locks, including keeps, spindles, handles, and various accessories to enhance your locking system.
Latch Reversal: To reverse the latch, simply push it in until a screw appears at the back of the lockcase. Remove the screw to take out the latch, reverse it, reinsert, and replace the screw.
Versatility
This lock is suitable for use on UPVC doors, aluminium doors, timber multipoint doors, and composite doors, making it a flexible choice for various applications.
Product Specifications
- Manufacturer: AGB
- Backset: Select from drop-down - How do I measure the backset?
- Centres PZ: 92mm - How do I measure the centres?
- Faceplate: Select from drop-down - How do I measure the faceplate?
- Spindle Size: 8mm
- Hooks: 4
- Deadbolts: 3
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down - What is the operation?
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1410mm
- Height: 2200mm
- Top Deadbolt to Spindle: 665mm
- Bottom Deadbolt to Spindle: 745mm
- Door Material: UPVC, Aluminium, Timber, Composite
This comprehensive overview highlights the AGB multipoint door lock's features and specifications, ensuring you have all the information needed for a secure installation.
