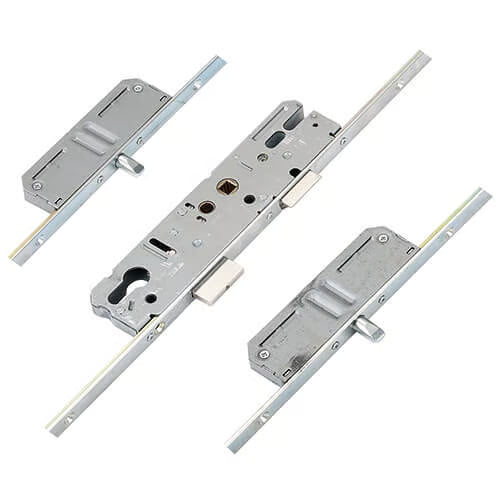

KFV Lever Multipoint Door Lock Overview
The KFV Lever multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 2 Pin Bolts, 1 Deadbolt, and 1 Latch. This lock is suitable for various door materials including UPVC, aluminium, timber, and composite.
Identification Tips
Identifying a KFV multipoint door lock can be tricky, especially with older models that lack a visible stamp on the faceplate. However, recent models prominently display the KFV logo.
-
Faceplate Colors: Early models have a yellow passivated faceplate and dark grey gearboxes, while newer versions feature shiny silver faceplates and light grey gearboxes.
-
Measurements: For accurate identification, remove the lock from the door and compare its measurements with our outline drawings.
Lock Features and Specifications
KFV locks have evolved, with many older models now discontinued. The newer modular designs eliminate the need for changing routing positions, which may require adjustments to the door when replacing old locks.
-
Gearbox Specifications:
- Single spindle with 92mm centres
- Overall height: 210mm
- Bolt throw: 21mm
- Distance from latch to deadbolt: 56mm
- Distance from spindle to top of case: 85mm
Older gearboxes are typically attached to the faceplate with 1/8" rivets, while new models use screws for a more secure fit.
Operation Instructions
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and the main deadbolt (if applicable).
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Products
We offer a variety of associated products for KFV Lever multipoint door locks, including keeps, spindles, handles, and other accessories to ensure your locking system is complete and functional.
Product Specifications Summary:
- Manufacturer: KFV
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Pin Bolts: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 2170mm
- Top Pin to Spindle: 730mm
- Bottom Pin to Spindle: 760mm
- Door Material: UPVC, Aluminium, Timber, Composite
For any further assistance or inquiries regarding KFV locks, feel free to reach out!
