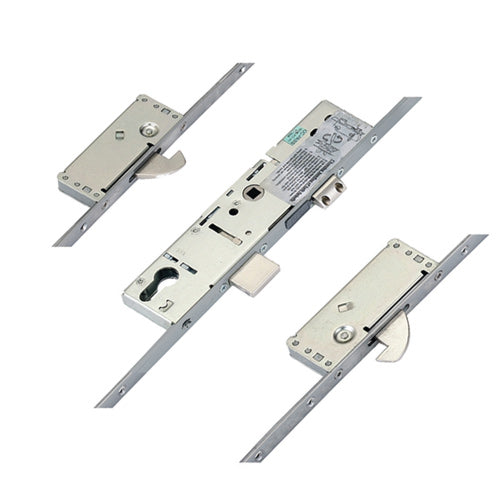

Latch Deadbolt 2 Large Hooks Split Spindle Multipoint Door Lock - Option 3 (top hook to spindle = 680mm)
Latch Deadbolt 2 Large Hooks Split Spindle Multipoint Door Lock - Option 3 (top hook to spindle = 680mm)
Product Overview: ERA Deadbolt Multipoint Door Lock
The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and compatibility with various door types.
Identifying Your ERA Lock
Recognizing an ERA multipoint door lock can be straightforward, but be cautious of rebranded versions. Many door and window companies utilize ERA locks, often stamping their faceplates with different logos, including Surelock, Saracen, and others.
A key feature to look for is the holdback snib on the faceplate, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. However, some brands may alter the snib color, so it's essential to verify.
Lock Mechanism and Gearbox Details
Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Notably, the ERA gearboxes are distinctive with a square design and no corner cutouts, measuring 221mm in length. They come in various backsets (30mm, 35mm, or 45mm) and can accommodate different locking mechanisms, including standard euro cut outs and the Invincible cylinder cut out.
Interchangeability and Customization
With the exception of specific models like the British Standard Fortress lock, ERA gearboxes are interchangeable. If your client requires a different locking mechanism, we can customize the lock to meet their needs.
Locking Arrangements and Security Features
ERA multipoint locks offer two hook locking arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks are bi-directional, providing superior security by throwing upwards and downwards.
Deadbolt Functionality
The deadbolt, referred to as a linear bolt by ERA, features an 18mm throw and is designed to pull the door tightly against the frame. These locks are commonly installed on timber and composite doors.
Operation Instructions
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Compliance and Testing
The ERA Deadbolt multipoint door lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards (240 hours) and has been endurance tested for 50,000 cycles. It is designed to comply with PAS24:2012 requirements for enhanced security.
Additional Products
We also offer a range of associated products for the ERA Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything needed for installation and maintenance.
This lock is suitable for various applications, including UPVC, aluminium, timber, and composite doors, making it a versatile choice for any security needs.
Product Specification
Manufacturer: ERA
Backset: Select from drop-down
How do I measure the backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.
Centres PZ: 92mm
How do I measure the centres?
To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This ensures that both components align correctly for smooth operation.
Faceplate: Select from drop-down
How do I measure the faceplate?
To measure the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct size from the drop-down options.
Spindle Size: 8mm
Hooks: 2
Deadbolts: 1
Latch: 1
Main Gearbox: Latch & deadbolt
Operation: Select from drop-down
What is the operation?
The operation refers to how the lock engages and disengages. It typically involves lifting the handle to lock and turning the key to unlock.
Spindle: Split 8mm
Handing: Non handed
Distance Between Inner Locking: 1380mm
Height: 2100mm
Top Hook to Spindle: 680mm
Bottom Hook to Spindle: 700mm
Door Material: UPVC, Aluminium, Timber, Composite
This comprehensive specification ensures that you have all the necessary details to select and install the ERA Deadbolt multipoint door lock effectively.
