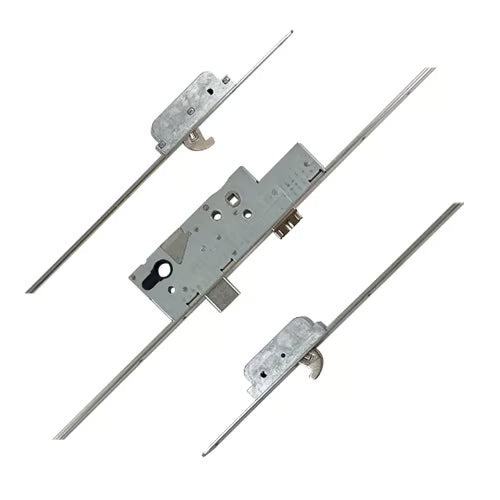

Latch Deadbolt 2 Hooks Key Wind Multipoint Door Lock

Product Overview: Elite Key Wind Multipoint Door Lock

The Elite Key Wind multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for timber and composite doors, particularly those equipped with long pull handles, eliminating the need to lift a lever for engagement.

Key Features:

• Durable Construction: Made in Europe, these locks come with a "Silbear" coating, providing 480 hours of salt spray protection, ensuring longevity and reliability in various environments.

• Design Variants: Available in standard and "Heritage" configurations, the latter featuring a higher gearbox position for aesthetic appeal.

• Identification: Look for the Elite logo stamped on the faceplate, which has a 20mm radius, indicating a key wind lock typically paired with pull handles.

• Compatibility: While similar to the old Roto MVD range, the Elite key wind locks have distinct operational features, making them a versatile choice for modern installations.

Specifications:

• Gearbox Options: Available in 35mm or 45mm backset, single spindle lock configuration.
• Dimensions: Gearbox measures 200mm high plus backset + 19mm, with a 2mm allowance for the faceplate.
• Deadbolt and Latch Measurements: The deadbolt projects 20mm and is 32mm high, while the latch is 30mm high and projects 10mm.
• Centre Measurements: Positioned at 62mm and 92mm, with the top spindle located 122mm from the bottom of the case.

Operation Instructions:

• To Lock:

  1. Close the door to automatically engage the latch.
  2. Turn the key to throw and engage the locking points.

• To Unlock:

  1. Turn the key to unwind the locking points.
  2. A further quarter turn retracts the latch.

Additional Information:

We offer a comprehensive range of associated products for the Elite Key Wind multipoint door locks, including keeps, spindles, handles, and accessories. This lock is suitable for both timber and composite doors, ensuring a secure and stylish entry solution for your home or business.

Product Specifications:

• Manufacturer: Elite
• Backset: Select from drop-down options
• Centres PZ: 92mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down options
• Spindle: Single 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1486mm
• Height: 1770mm
• Top Hook to Spindle: 737mm
• Bottom Hook to Spindle: 749mm
• Door Material: Timber, Composite
