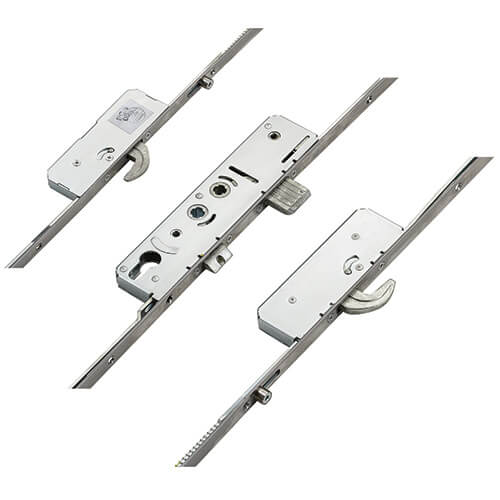

Latch Deadbolt 2 Hooks Double Spindle Multipoint Door Lock (top hook to spindle = 740mm) - Shootbolt Compatible

Avantis Multipoint Door Lock Overview

The Avantis multipoint door lock is engineered for security and ease of use, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. Recognized for its unique latch and deadbolt configuration, this lock is ideal for timber and composite French doors.

Key Features:

• Distinctive Configuration: The deadbolt is positioned above the latch, making it easy to identify.

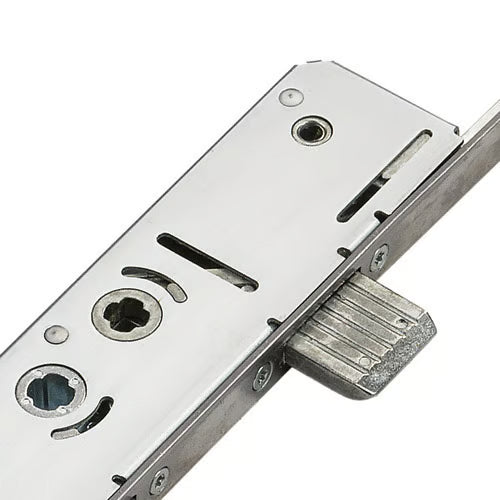

• Enhanced Security: Designed specifically for the UK residential market, Avantis locks boast a 25mm throw and a direct drive deadbolt, surpassing the 20mm throw of many competitors. The deadbolt includes 5 grooves and a chamfered design for improved compression.

• Compatibility: The 16mm faceplate locks are compatible with shootbolts, enhancing versatility.

• Expertise and Reliability: Established in 2006 by the former CEO of Millenco, Avantis combines innovation with extensive industry experience, leading to a growing demand for repairs and replacements.

Technical Specifications:

• Gearbox Dimensions: 220mm high with a backset of +15mm. Allow for an additional 2mm when measuring backset on a pre-fitted faceplate.

• Screw Placement: Fixed to the faceplate with 4 screws—1 above the deadbolt, 2 between the latch and deadbolt, and 1 below the latch. Specific measurements between screw holes are provided for precise installation.

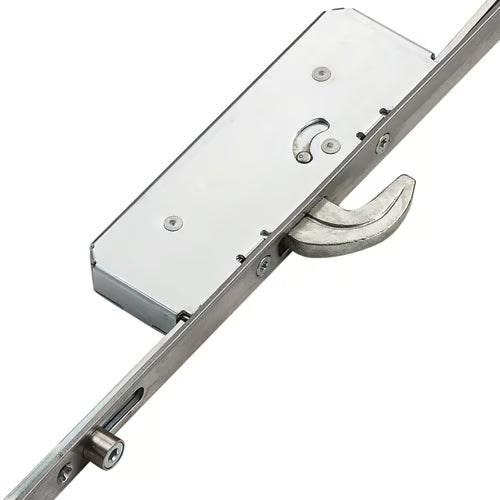

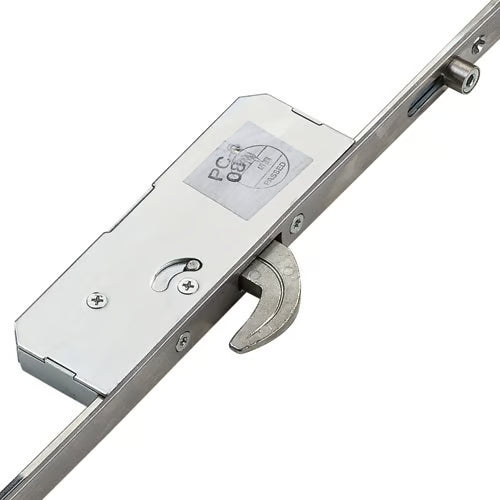

• Hook Design: Avantis hooks are the largest in the UK market at 25mm, designed to pull the door tightly to the frame for optimal weather sealing. They operate in opposing directions for enhanced security.

Operation Instructions:

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Testing and Durability:

• Standards Compliance: Tested to PAS24 and BS6375 for security and performance.
• Corrosion Resistance: Rated to BSEN1670:2007 Grade 4.
• Cycle Testing: Endured 50,000 cycles, ensuring long-lasting reliability.

Additional Products:

We offer a comprehensive range of associated products for Avantis multipoint door locks, including keeps, spindles, handles, and accessories.

Latch Reversal:

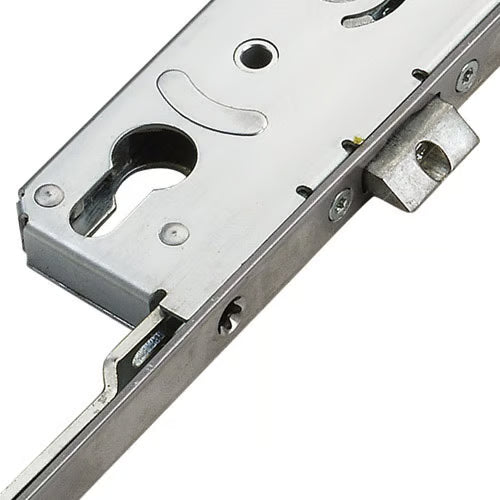

To reverse the latch, simply undo the screw in the center, reverse the latch, reinsert it, and replace the screw.

Avantis locks are designed for both lift lever and double spindle nightlatch operations, ensuring flexibility for various door types.

Product Specification

Manufacturer: Avantis

Backset: Select from drop-down
How do I measure the backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring a proper fit.

Centres PZ: 92mm/62mm
How do I measure the centres?
To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This will help you select the correct PZ measurement for your lock.

Faceplate: Select from drop-down
How do I measure the faceplate?
To measure the faceplate, measure the width and height of the existing faceplate on your door. Ensure to check the thickness as well, as this can vary.

Spindle Size: 8mm

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down
What is the operation?
The operation refers to how the lock engages and disengages. Common types include lift lever, double spindle, and night latch. Choose the one that best fits your door's requirements.

Spindle: Double 8mm

Handing: Non handed

Distance Between Inner Locking: 1500mm

Height: 2200mm

Top Hook to Spindle: 740mm

Bottom Hook to Spindle: 760mm

Door Material: UPVC, Aluminium, Timber, Composite
