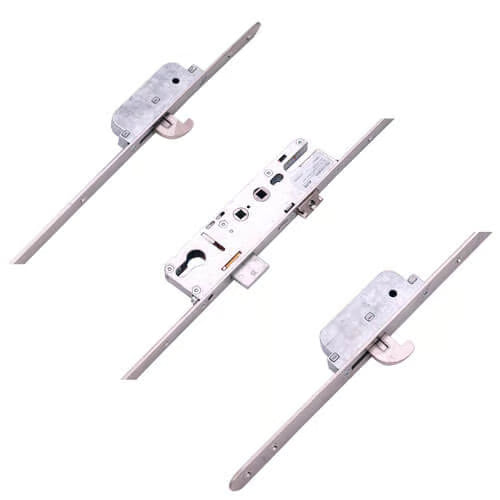

Product Overview: Elite Standard Multipoint Door Lock
The Elite Standard multipoint door lock is designed for enhanced security and versatility, featuring 2 hooks, 1 deadbolt, and 1 latch. Crafted in Europe, this lock is equipped with a "Silbear" coating, providing exceptional protection against salt spray for up to 480 hours.
Key Features:
-
Durable Construction: Made with high-quality materials and a Silbear coating for superior corrosion resistance.
-
Identification: Look for the Elite logo stamped on the faceplate. The gearbox includes a slot and a piercing for bolt-through handles, ensuring compatibility and ease of installation.
-
Legacy Design: These locks are a continuation of the Roto-Frank range, utilizing the same tooling and specifications, now enhanced with the Silbear coating.
-
Versatile Applications: Available in standard and compact versions, suitable for various door types, including timber and composite doors.
Specifications:
- Manufacturer: Elite
- Backset: Customizable (see drop-down for options)
- Centres PZ: 92mm/62mm
- Faceplate: Customizable (see drop-down for options)
- Spindle Size: 8mm
- Operation: Double spindle
- Handing: Non-handed
-
Dimensions:
- Height: 1770mm
- Distance Between Inner Locking: 1490mm
- Top Hook to Spindle: 737mm
- Bottom Hook to Spindle: 753mm
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Lift the handle to engage the locking points.
- Turn the key to secure the system.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Additional Information:
- Testing Standards: 480 hours salt spray tested to EN1675 Grade 5.
- Accessories Available: A range of associated products, including keeps, spindles, handles, and other accessories, are available to complement the Elite Standard multipoint door locks.
This multipoint door lock is an excellent choice for those seeking reliability and security in their locking systems.
