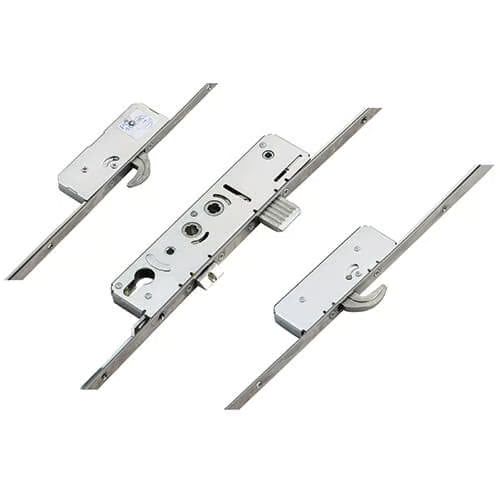

Latch Deadbolt 2 Hooks Double Spindle Multipoint Door Lock

Avantis Multipoint Door Lock Overview

The Avantis multipoint door lock is engineered for security and ease of use, featuring a robust design that includes 2 hooks, 1 deadbolt, and 1 latch. Recognized for its unique latch and deadbolt configuration, the Avantis 550 Series is a standout choice for residential doors in the UK.

Key Features:

• Superior Hook Design: Avantis locks boast the largest hooks on the market at 25mm, ensuring maximum security and durability.

• Distinctive Configuration: The deadbolt is positioned above the latch, making it easy to identify even before removal.

• Enhanced Security: With a 25mm throw and a direct drive deadbolt, Avantis locks outperform many competitors, which typically offer a 20mm throw. The deadbolt features 5 grooves and a chamfered design for improved compression.

• Compatibility: The locks are compatible with 16mm faceplate locks and shootbolts, providing versatility for various door types.

Manufacturer Background:

Established in 2006 by the former CEO of Millenco, Avantis is a relatively new player in the multipoint lock market. However, the brand benefits from extensive expertise, leading to a growing demand for repairs and replacements.

Gearbox Specifications:

• Unique Design: The Avantis gearbox features a grooved deadbolt above the latch, measuring 30mm high and extending 25mm when thrown.

• Double Spindle Options: Available with centres at 92mm and 62mm, these gearboxes can function as a double spindle nightlatch or a standard lift lever.

• Installation Details: Gearboxes measure 220mm high plus backset, with specific screw hole measurements for secure installation.

Operation Instructions:

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To unlock the door:

1. Turn the key to unlock.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Testing and Durability:

• Standards Compliance: The lock has been tested to PAS24 and BS6375 standards, ensuring high performance and security.

• Corrosion Resistance: Rated to BSEN1670:2007 Grade 4, the lock is built to withstand the elements.

• Cycle Testing: Proven durability with testing up to 50,000 cycles.

Additional Products:

We offer a range of associated products for Avantis multipoint door locks, including keeps, spindles, handles, and accessories to enhance your locking system.

Latch Reversal:

For latch reversal, simply undo the screw in the latch, reverse it, reinsert, and replace the screw.

Versatile Applications:

This lock is suitable for various door materials, including UPVC, aluminium, timber, and composite doors, making it a versatile choice for any home.

Product Specifications:

• Manufacturer: Avantis
• Backset: Select from drop-down
• Centres PZ: 92mm/62mm
• Faceplate: Select from drop-down
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down
• Spindle: Double 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1305mm
• Height: 2200mm
• Top Hook to Spindle: 645mm
• Bottom Hook to Spindle: 660mm
• Door Material: UPVC, Aluminium, Timber, Composite
