Latch Deadbolt 2 Hooks Split Spindle 44mm Flat White Faceplate Multipoint Door Lock

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and ease of identification.

Key Features:

• Versatile Branding: ERA manufactures locks for various door and window companies, often rebranded. Look for the ERA logo or other brand names like Surelock, Saracen, and more.

• Distinctive Holdback Snib: The holdback snib is typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. Be aware that some brands may have different colors.

• Split Spindle Mechanism: Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function.

• Gearbox Design: The ERA gearbox is square with no corner cutouts, measuring 221mm in length. Available backsets include 30mm, 35mm, or 45mm, with interchangeable gearboxes (excluding certain models).

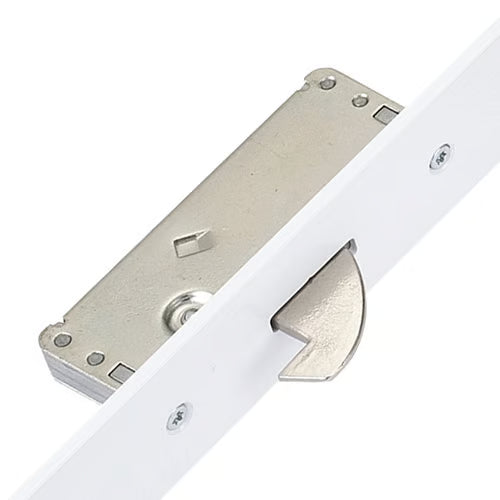

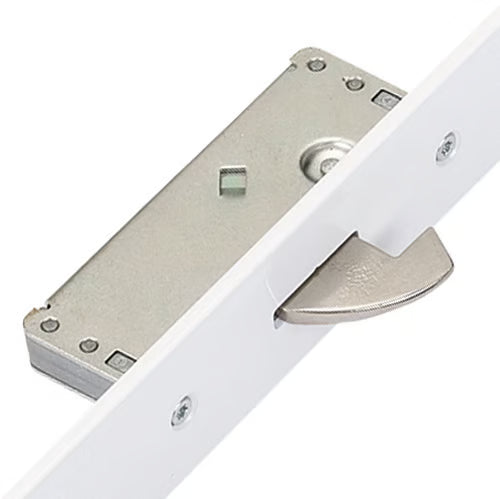

• Hook Locking Arrangements: Two types of hooks are available: a standard hook for tight spaces and a larger security steel hook for enhanced security.

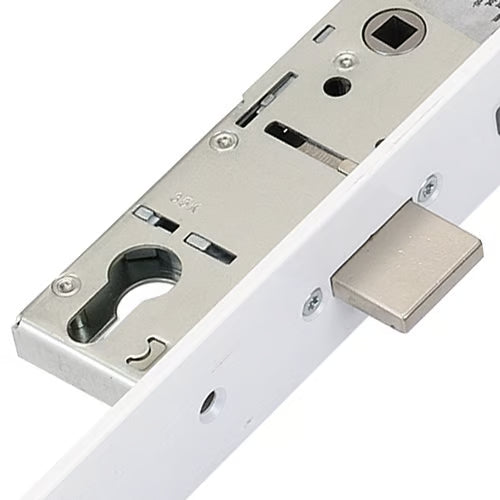

• Deadbolt Specifications: The deadbolt (linear bolt) features an 18mm throw, designed to pull the door snugly against the frame, ideal for timber and composite doors.

Operation Instructions:

To lock the door:

1. Lift the handle to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested for 50,000 cycles.
• Designed to comply with PAS24:2012 standards.

Additional Products: We offer a range of associated products for the ERA Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything needed for installation and maintenance.

This lock is suitable for both timber and composite doors, providing peace of mind with its robust security features.

Product Specification

Manufacturer: ERA

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Split 8mm

Handing: Non handed

Distance Between Inner Locking: 1395mm

Height: 2090mm

Top Hook to Spindle: 728mm

Bottom Hook to Spindle: 667mm

Door Material: Timber, Composite

For precise measurements, follow these guidelines:

Measuring the Backset:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Measuring the Centres (PZ):
To measure the centres, measure the distance from the center of the keyhole to the center of the handle hole. This ensures that both components align correctly for smooth operation.

Measuring the Faceplate:
To measure the faceplate, measure the width and height of the area where the faceplate will be installed. This ensures a snug fit and proper sealing against the door frame.

These specifications and measurement guidelines will help you select the right components for your ERA Deadbolt multipoint door lock installation.
