Product Overview: Elite Standard Multipoint Door Lock

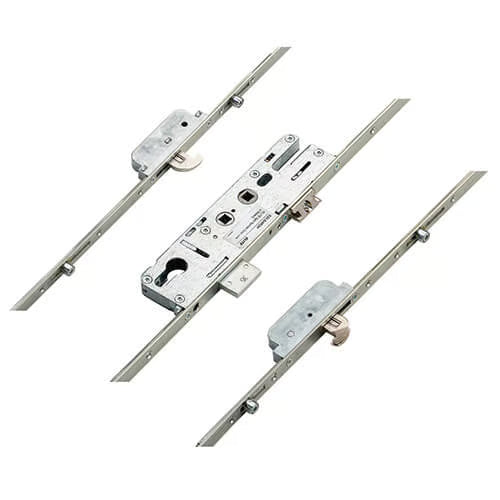

The Elite Standard multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 4 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock serves as a direct replacement for older Roto locks, making it a practical choice for those seeking reliable security solutions.
Key Features:
-
Versatile Replacement: Ideal for replacing hard-to-find or discontinued locks, the Elite multipoint lock comes with a one-piece keep for easy installation.
-
European Quality: Manufactured in Europe, this lock boasts a "Silbear" coating that provides up to 480 hours of salt spray protection, ensuring longevity and resistance to corrosion.
-
Identifiable Design: Look for the Elite logo stamped on the faceplate. The gearbox includes a slot and a small hole for bolt-through handles, making identification straightforward.
-
Compatibility: Originally manufactured by Roto-Frank, these locks maintain the same specifications as the original Roto locks, with the added benefit of the new Silbear coating.
-
Size Options: Available in standard and compact versions, the locks are designed for various door heights while maintaining a consistent handle height of 950mm.

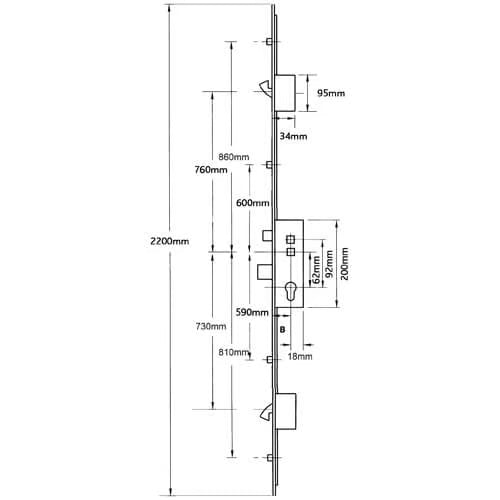

Technical Specifications:
-
Gearbox Dimensions: 200mm high with a backset of +19mm. Remember to account for an additional 2mm for the faceplate when measuring.
-
Locking Mechanism: The deadbolt projects 20mm, while the latch projects 10mm. The distance between the latch and deadbolt is 63mm.
-
Centre Measurements: Centres are positioned at 62mm and 92mm, with the top spindle located 122mm from the bottom of the case.
-
Roller Functionality: Rollers assist in compressing the door against the frame, preventing dust and water ingress while also minimizing warping.
Operation Instructions:
To lock the door:
- Close the door to engage the latch automatically.
- Lift the handle to engage the locking points.
- Turn the key to secure the system.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Additional Information:
-
Latch Reversal: Easily reverse the latch by undoing the screw, flipping it, and reinserting it.
-
Applications: Suitable for both UPVC and aluminium doors, the Elite multipoint lock is a versatile choice for various installations.
Product Specifications:
- Manufacturer: Elite
- Backset: Selectable via drop-down
- Centres PZ: 92mm/62mm
- Faceplate: Selectable via drop-down
- Spindle Size: 8mm
- Operation: Double spindle
- Handing: Non-handed
- Material Compatibility: UPVC, Aluminium
