Latch Deadbolt 2 Hooks 4 Rollers Double Spindle Multipoint Door Lock

Product Overview: Avocet Multipoint Door Lock

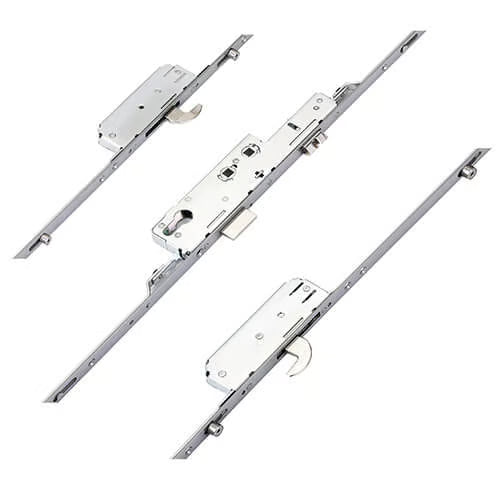

The Avocet multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes 4 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is engineered to provide peace of mind while maintaining ease of use.

Key Features:

• Unique Locking Mechanism: The original Avocet design incorporates unique locking positions, ensuring a secure fit.

• Finish Options: Available in a Trivalent silver finish, with a stainless steel option available by special order for harsher environments.

• Identification: Easily identifiable by the Avocet logo stamped on the faceplates, with older models featuring the "WMS" logo. The uniquely shaped gearboxes assist in identification.

• Versatile Configurations: Originally offered in various configurations, including hooks, rollers, and deadbolts. Notable exceptions in the lineup include the 2 roller and 2 mushroom locks.

• Sash Lifter Device: Some models include a "sash lifter" for improved alignment, though replacements are recommended as these devices are no longer available.

• Backset Measurements: Most locks are designed with a 35mm backset, while the Affinity Bastion lock accommodates a 45mm backset for composite doors.

• Double Spindle Nightlatch Configuration: Current models feature a double spindle design, with centers at 62mm and 92mm, allowing for versatile installation options.

Technical Specifications:

• Gearbox Dimensions: 218mm high x backset + 15mm, with a distinctive cut-out design for easy handle fitment.

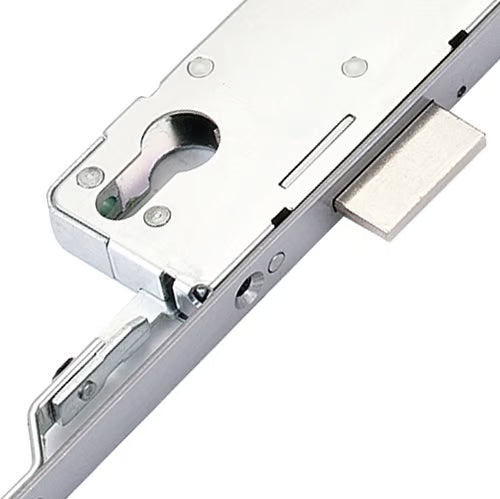

• Latch and Deadbolt Measurements: The latch measures 29mm high, while the deadbolt is 34mm high, with an 82mm distance between them.

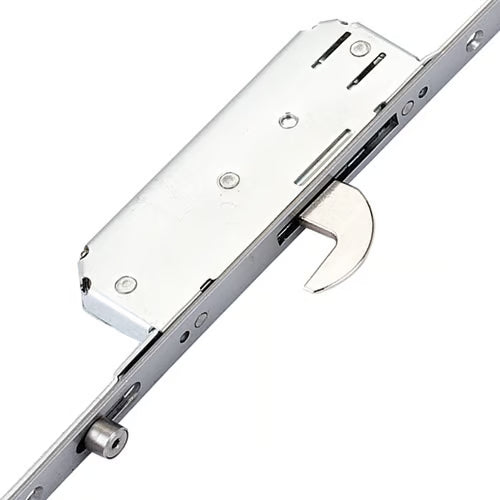

• Hook Mechanism: Hooks operate in opposing directions, with the top hook throwing upwards and the bottom downwards.

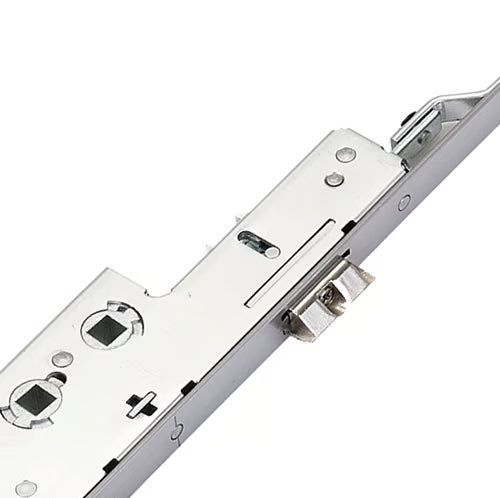

• Roller Functionality: Rollers are designed for compression, aiding in door alignment and preventing warping.

Operation Instructions:

• To Lock:

  1. Close the door to engage the latch automatically.
  2. Lift the handle to engage the locking points.
  3. Turn the key to secure the system.

• To Unlock:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points.
  3. A quarter turn of the key will retract the latch.

Corrosion Resistance: Compliant with BSEN1670:2007 Grade 4 and tested for 100,000 cycles, ensuring longevity and reliability.

Additional Products: We offer a range of associated products, including keeps, spindles, handles, and accessories to complement your Avocet multipoint door lock.

Latch Reversal Instructions: Depending on the manufacturing date, either undo the hexagonal screw on the side of the lock case or the screw in the center of the latch to reverse and reinsert the latch.

This lock is suitable for use in UPVC and aluminum doors, providing a versatile solution for various applications. For assistance in finding the best replacements or additional information, please contact us.

Product Specification

Manufacturer: Avocet

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm/62mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Rollers: 4

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Double 8mm

Handing: Non handed

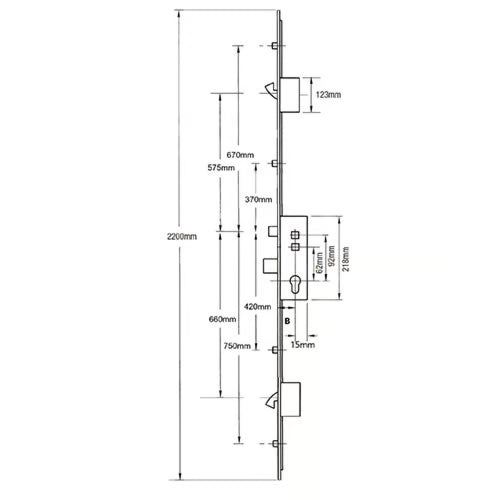

Distance Between Inner Locking: 790mm

Distance Between Outer Locking: 1420mm

Height: 2200mm

Top Hook to Spindle: 575mm

Bottom Hook to Spindle: 660mm

Top Roller to Spindle: 670mm

Bottom Roller to Spindle: 750mm

Door Material: UPVC, Aluminium

Measuring Instructions:

To ensure accurate measurements for your Avocet multipoint door lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole or latch.
2. This distance is your backset measurement.

Centres Measurement:

1. Measure the distance between the centers of the keyhole and the handle.
2. This will help you determine the PZ measurement.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure to check the thickness as well for a proper fit.

Operation:

1. The operation of the lock can vary based on the configuration. Ensure to select the appropriate option from the drop-down menu based on your specific needs.

By following these instructions, you can ensure that your Avocet multipoint door lock is installed correctly and functions optimally. For any further assistance, feel free to reach out!
