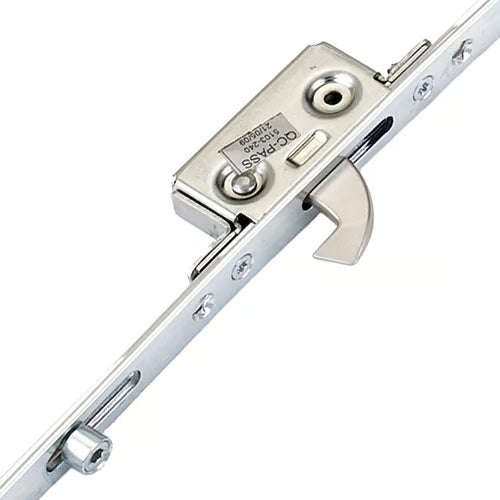

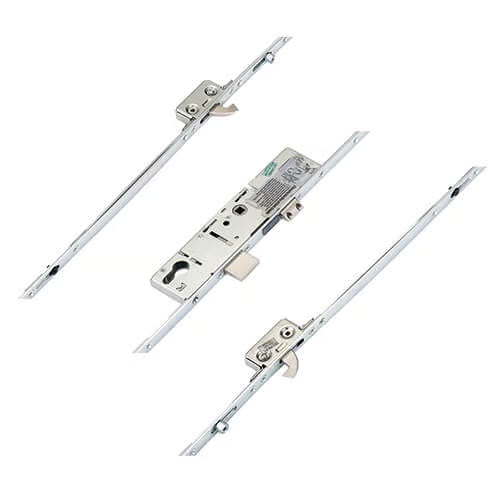

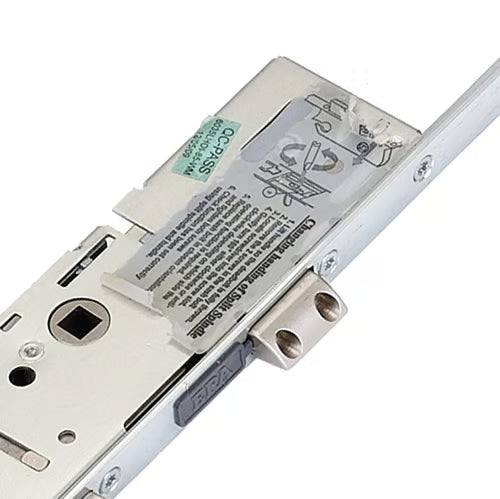

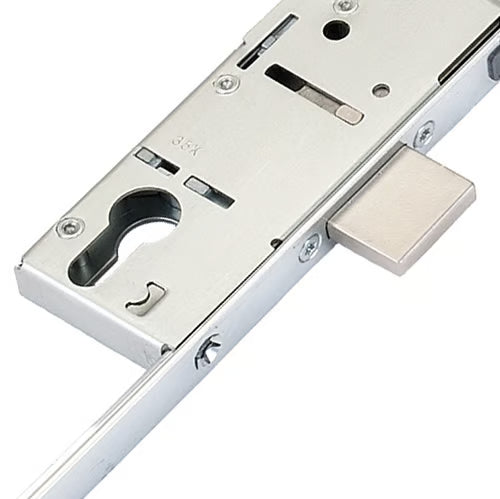

Latch Deadbolt 2 Hooks 2 Rollers Split Spindle Multipoint Door Lock - Option 1

Product Information

ERA locks may also be stamped Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego.

Originally designed to replace GU, Lockmaster, and Winkhaus locks without the need for new routing positions, these locks are available in two options.

Backset Options:

• 28mm
• 30mm
• 35mm
• 45mm

Centres:

• 92mm

Operation:

• Lift lever or split spindle nightlatch.

Latch Reversal:
To reverse the latch, simply undo the screws in the latch to remove it. Reverse the latch, reinsert it, and replace the screws.

Product Specification

Manufacturer: ERA

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Rollers: 2

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Split 8mm

Handing: Non handed

Distance Between Inner Locking: 1220mm

Distance Between Outer Locking: 1430mm

Height: 2250mm

Top Hook to Spindle: 610mm

Bottom Hook to Spindle: 610mm

Top Roller to Spindle: 715mm

Bottom Roller to Spindle: 715mm

Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your lock installation, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. Ensure the door is closed for an accurate reading.

Centres Measurement:

1. Measure the distance from the top of the lock to the center of the keyhole.
2. This is crucial for aligning the lock correctly.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. This ensures a proper fit for the new lock.

By following these steps, you can ensure that your new ERA lock will fit perfectly and operate smoothly. If you have any further questions or need assistance, feel free to reach out!
