Description
Product Information

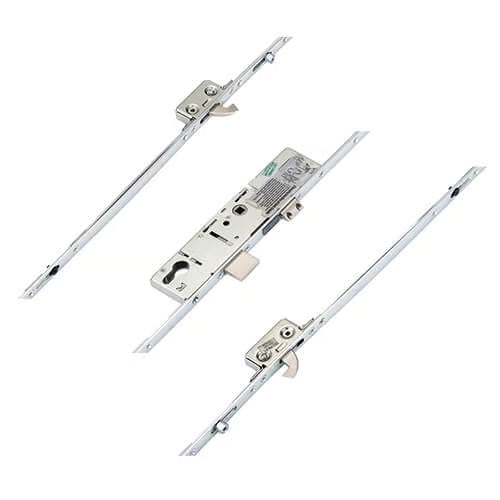

ERA locks may also be stamped Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego.
Originally designed to replace GU, Lockmaster, and Winkhaus locks without the need for new routing positions, these locks are available in two options.
Backset Options: 28mm, 30mm, 35mm, and 45mm.
Centres: 92mm.
Operation: Lift lever or split spindle nightlatch.
Latch Reversal: Undo the screws in the latch to remove. Reverse, reinsert, and replace screws.
Product Specification
- Manufacturer: ERA
- Backset: Select from drop-down - How do I measure the backset?
- Centres PZ: 92mm - How do I measure the centres?
- Faceplate: Select from drop-down - How do I measure the faceplate?
- Spindle Size: 8mm
- Rollers: 2
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down - What is the operation?
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1220mm
- Distance Between Outer Locking: 1430mm
- Height: 2250mm
- Top Hook to Spindle: 610mm
- Bottom Hook to Spindle: 610mm
- Top Roller to Spindle: 715mm
- Bottom Roller to Spindle: 715mm
- Door Material: UPVC, Aluminium
