Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top roller to spindle = 730mm) - Shootbolt Compatible

Product Overview: Avocet Multipoint Door Lock

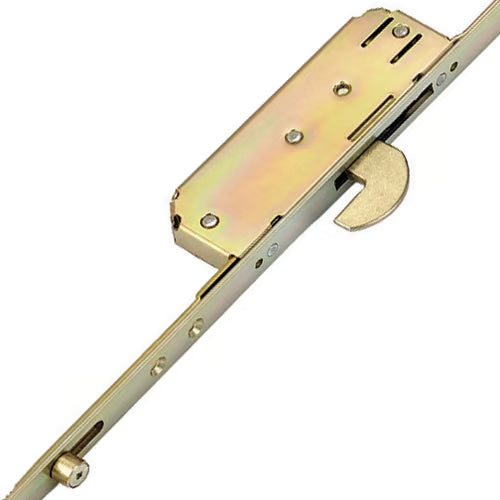

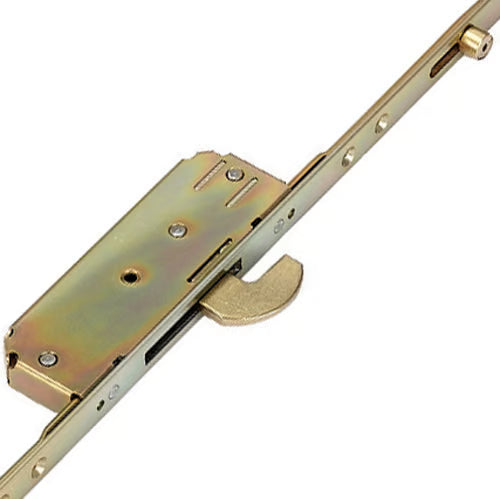

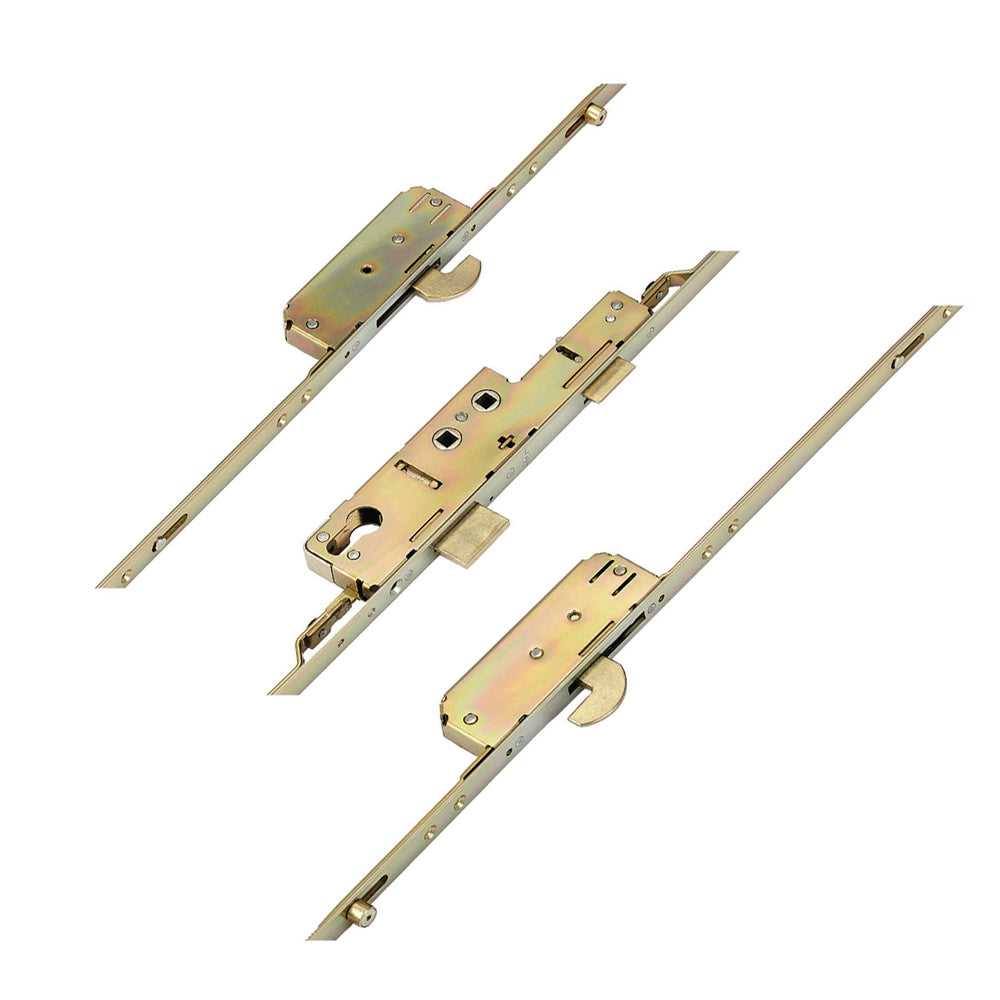

The Avocet multipoint door lock is a robust security solution featuring a combination of 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is often recognized by its distinctive yellow finish, which should not be confused with the silver AVO352H2RSS model that has different roller positions.

Identification Features

Once removed from the door, Avocet locks are easily identifiable. Look for the Avocet logo stamped on the faceplates, although older models may bear the "WMS" logo. The unique gearbox shape, with a cut-out extending below the latch, further aids in identification.

Configurations and Variations

Originally, Avocet locks were available in various configurations, including hooks, rollers, and deadbolts. The earlier models were made from yellow passivated steel, giving them a distinctive brassy appearance. Recent updates have introduced stainless steel and Trivalent silver finishes. Notably, while most variations have been replaced, some, like the 2 roller and 2 mushroom locks, remain available.

Sash Lifter Device

Some models include a "sash lifter" device for improved alignment between the sash and frame. However, these are no longer produced, and we recommend replacing such locks with standard versions.

Backset and Compatibility

Most Avocet locks feature a 35mm backset, while the Affinity Bastion lock is designed for composite doors with a 45mm backset. Although some original 4 roller locks had a single spindle and lift lever functionality, current models are only available in a double spindle nightlatch configuration.

Gearbox Specifications

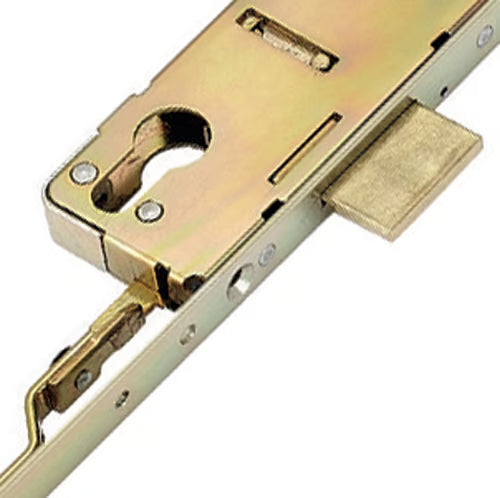

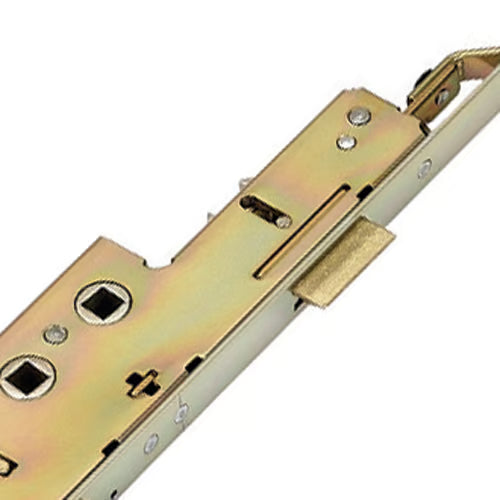

Avocet gearboxes measure 218mm high plus the backset (add 15mm). The unique cut-out in the top corner assists with handle fitment. The latch measures 29mm high, and the deadbolt is 34mm high, with an 82mm distance between them.

Lock Operation

To operate the lock:

• Locking:

  1. Close the door to engage the latch.
  2. Lift the handle to engage the locking points.
  3. Turn the key to secure the system.

• Unlocking:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points.
  3. A quarter turn of the key will retract the latch.

Corrosion Resistance and Durability

The Avocet multipoint door lock is tested to BSEN1670:2007 Grade 4 for corrosion resistance and can withstand 100,000 cycles, ensuring long-lasting performance.

Associated Products

We offer a range of associated products for Avocet multipoint door locks, including keeps, spindles, handles, and accessories, to help you maintain and upgrade your locking system.

Latch Reversal Instructions

Depending on the manufacturing date, the latch can be reversed by either:

• Undoing the hexagonal screw on the side of the lock case, reversing the latch, reinserting, and replacing the screw.
• Or, undoing the screw in the center of the latch, reversing, reinserting, and replacing the screw.

This lock is suitable for use on UPVC and aluminum doors, providing versatile security options for various applications.

Product Specification

Manufacturer: Avocet

Backset: Select from drop-down - How do I measure the backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ: 92mm/62mm - How do I measure the centres?
To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This ensures that the lock aligns correctly with the door hardware.

Faceplate: Select from drop-down - How do I measure the faceplate?
To measure the faceplate, measure the width and height of the existing faceplate on the door. This will help you select the correct size from the drop-down options.

Spindle Size: 8mm

Rollers: 2

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?
The operation refers to how the lock engages and disengages. Typically, this involves lifting the handle to lock and turning the key to unlock.

Spindle: Double 8mm

Handing: Non handed

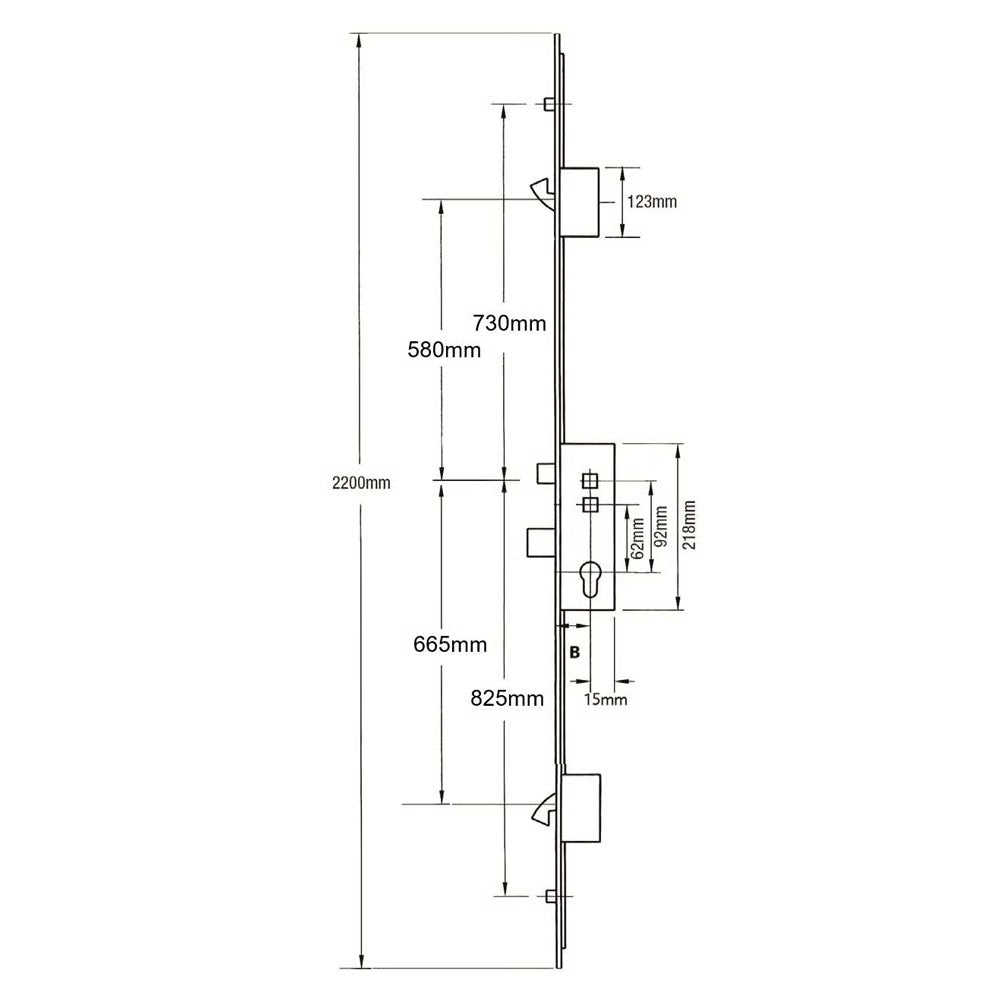

Distance Between Inner Locking: 1245mm

Distance Between Outer Locking: 1555mm

Height: 2200mm

Top Hook to Spindle: 580mm

Bottom Hook to Spindle: 665mm

Top Roller to Spindle: 730mm

Bottom Roller to Spindle: 825mm

Door Material: UPVC, Aluminium
