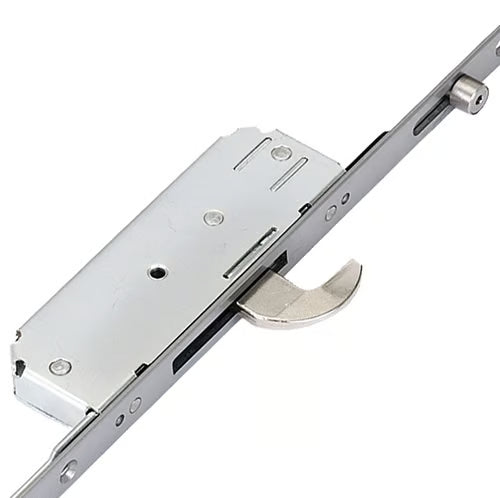

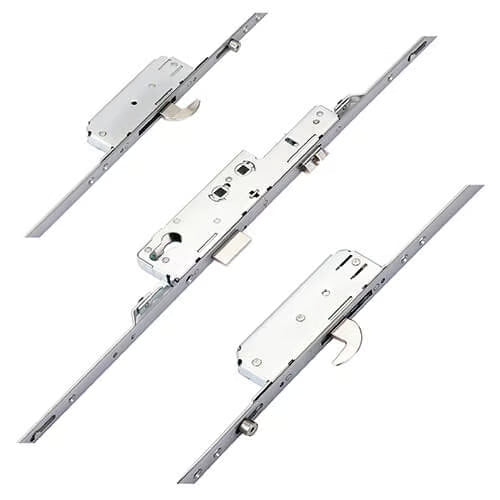

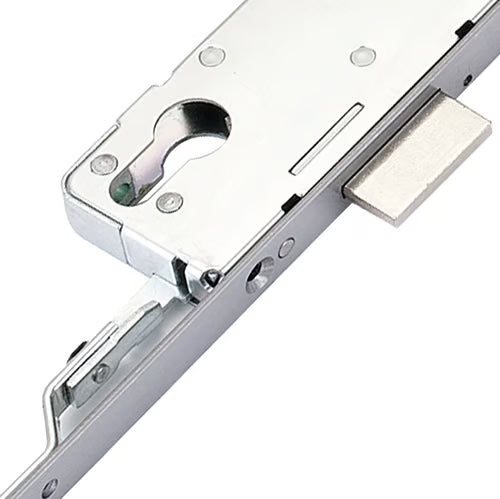

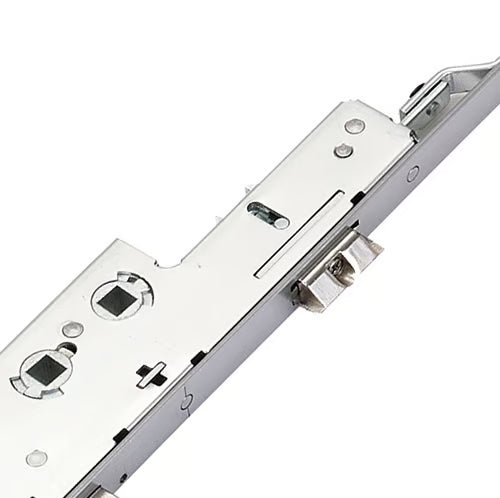

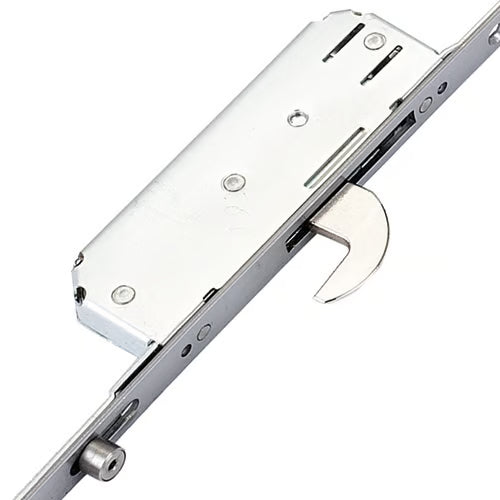

Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top roller to spindle = 675mm) - Shootbolt Compatible

Product Overview: Avocet Multipoint Door Lock

The Avocet multipoint door lock is a robust security solution featuring a combination of 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is designed for enhanced protection and ease of use, making it a popular choice for both residential and commercial applications.

Key Features:

• Unique Locking Positions: The original Avocet design includes distinctive locking positions that set it apart from other models, such as the yellow AVO352HB, which has different roller placements.

• Identification: Avocet locks are easily identifiable by their faceplates, typically stamped with the Avocet logo. Older models may feature the "WMS" logo. The unique gearbox shape, with a cut-out extending below the latch, aids in identification.

• Material and Finish: Originally made from yellow passivated steel, newer models now feature stainless steel or Trivalent silver finishes, enhancing durability and aesthetic appeal.

• Versatile Configurations: Available in various configurations, including hooks, rollers, and deadbolts, the Avocet multipoint locks cater to diverse security needs. Notably, the Affinity Bastion lock is designed specifically for composite doors.

• Sash Lifter Device: Some models include a "sash lifter" to ensure proper alignment with the frame, although replacements are recommended as these devices are no longer available.

• Backset Options: Most Avocet locks come with a 35mm backset, while the Affinity Bastion lock features a 45mm backset for composite doors.

• Double Spindle Functionality: Current models are designed with a double spindle nightlatch configuration, allowing for versatile operation. The lock can also function as a lift lever version if nightlatch functionality is not required.

• Compatibility with Shootbolts: Locks designed for PVCu with a flat 16mm faceplate can accommodate shootbolts, enhancing security.

Specifications:

• Gearbox Dimensions: 218mm high x backset + 15mm
• Latch Height: 29mm
• Deadbolt Height: 34mm
• Distance Between Deadbolt and Latch: 82mm
• Hook Box Height: 123mm
• Deadbolt Throw: 20mm

Operation Instructions:

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Corrosion Resistance: Rated to BSEN1670:2007 Grade 4 and tested for 100,000 cycles, ensuring long-lasting performance.

Latch Reversal Instructions: Depending on the manufacturing date, either undo the hexagonal screw on the side of the lock case or the screw in the center of the latch to reverse and reinsert the latch.

For assistance in finding the best replacements or additional products such as keeps, spindles, handles, and accessories, please contact us. The Avocet multipoint door lock is an excellent choice for enhancing the security of UPVC or aluminum doors.

Product Specification

Manufacturer: Avocet

Backset: Select from drop-down - How do I measure the backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring a proper fit.

Centres PZ: 92mm/62mm - How do I measure the centres?
To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This ensures that the lock aligns correctly with your door hardware.

Faceplate: Select from drop-down - How do I measure the faceplate?
To measure the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct size from the drop-down options.

Spindle Size: 8mm

Rollers: 2

Hooks: 2

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?
The operation refers to how the lock functions, including how it engages and disengages. Ensure you select the appropriate option based on your security needs.

Spindle: Double 8mm

Handing: Non handed

Distance Between Inner Locking: 1245mm

Distance Between Outer Locking: 1435mm

Height: 2200mm

Top Hook to Spindle: 580mm

Bottom Hook to Spindle: 665mm

Top Roller to Spindle: 675mm

Bottom Roller to Spindle: 760mm

Door Material: UPVC, Aluminium
