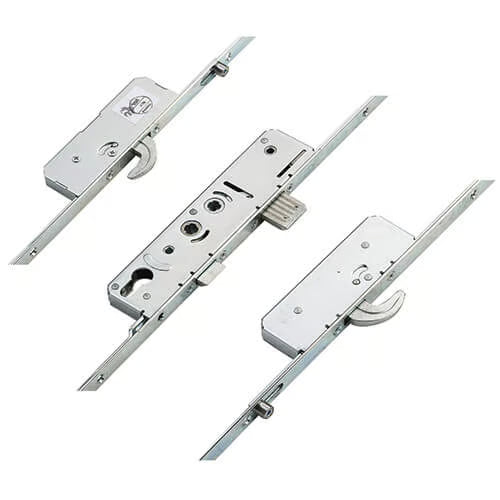

Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock

Product Overview

The Avantis multipoint door lock is engineered for security and ease of use, featuring a robust design that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. Recognized for its unique latch and deadbolt configuration, the Avantis 650 Series Residential lock stands out in the market.

Key Features

• Largest Hooks: Avantis locks boast the largest hooks available at 25mm, providing superior security.

• Distinctive Configuration: The deadbolt is positioned above the latch, making it easily identifiable even before removal.

• Enhanced Security: Designed specifically for the UK residential door market, the lock features a 25mm throw and a direct drive deadbolt, outperforming competitors with a 20mm throw.

• Durability: The deadbolt includes 5 grooves and is chamfered for improved compression, ensuring long-lasting performance.

• Compatibility: The lock is compatible with 16mm faceplate locks and shootbolts, offering versatility for various door types.

Manufacturer Background

Founded in 2006 by the former CEO of Millenco, Avantis is a relatively new player in the multipoint lock industry. However, the brand benefits from extensive expertise, leading to a growing demand for repairs and replacements.

Gearbox Specifications

• Unique Design: The gearbox features a grooved deadbolt above the latch, measuring 30mm high and extending 25mm when thrown.

• Double Spindle Options: Available with centres at 92mm and 62mm, suitable for both double spindle nightlatch functionality and standard lift lever use.

• Measurement Guidelines: Gearboxes measure 220mm high plus backset +15mm, with specific screw hole measurements for secure installation.

Security Features

Avantis locks are designed for maximum security, with hooks that throw in opposing directions and are chamfered to enhance weather sealing. Rollers assist in compression, preventing dust and water ingress while supporting the door's structure.

Operation Instructions

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Testing and Compliance

• Standards: Tested to PAS24 & BS6375 for security and performance.
• Corrosion Resistance: Complies with BSEN1670:2007 Grade 4.
• Durability: Successfully tested for 50,000 cycles.

Additional Products

We offer a range of associated products for Avantis multipoint door locks, including keeps, spindles, handles, and accessories to ensure complete compatibility and functionality.

Latch Reversal Instructions

To reverse the latch:

1. Undo the screw in the latch to remove it.
2. Reverse the latch, reinsert, and replace the screw.

Applications

This lock is suitable for use in UPVC and aluminium doors, making it a versatile choice for various residential applications.

Product Specifications

• Manufacturer: Avantis
• Backset: Select from drop-down
• Centres PZ: 92mm/62mm
• Faceplate: Select from drop-down
• Spindle Size: 8mm
• Operation: Select from drop-down
• Handing: Non-handed
• Distance Between Inner Locking: 1303mm
• Distance Between Outer Locking: 1535mm
• Height: 2250mm
• Door Material: UPVC, Aluminium
