Latch Deadbolt 2 Hook Split Spindle Timber and Composite Repair Multipoint Door Lock

Product Information

The V-MPLT combines the robust features of the standard VERSA lock with specialized design elements tailored for timber and composite doors, featuring a durable 20mm faceplate.

This lock is supplied in three parts, complete with serrated shoe connectors and UPVC keeps, allowing for easy cropping to fit most multipoint locks available in the UK market.

Adjustable packers ensure compatibility with any door profile, making installation straightforward.

The 35mm and 45mm backset locks come equipped with a split spindle for added versatility.

Latch Reversal: To reverse the latch, simply insert a flat-bladed screwdriver into the small rectangular slot above the spindle while simultaneously pulling out the latch. Reverse the latch and reinsert it.

Nightlatch Reversal: To reverse the nightlatch, remove the latch to expose a small screw. Use a small bladed screwdriver to turn the screw 180 degrees, then return the latch to its correct position.

For compatible shootbolts, please refer to the related products section on this page.

VERSA - Got it Covered

VERSA products are engineered to empower you to complete repairs confidently in a single visit. Our retrofit solutions offer a variety of options designed to save you time and expedite your work.

We offer a comprehensive range of versatile UPVC door and window repair products that can be tailored to meet the specific requirements of each job, allowing you to cut costs and minimize the need for a large inventory of specific-sized products.

With VERSA, you only need to stock one of each versatile product to handle all your emergency replacement needs.

Say Goodbye to:

• The risk of job cancellations while waiting for parts to arrive.
• The difficulty of locating the exact replacement product.
• Overloading your van with stock that may never be used.

Product Specification

Centres: 92mm
Length: Maximum 2430mm / Minimum 1405mm
Case height: 195mm
Case depth: Backset + 16mm
Maximum top hook to spindle: 847mm
Minimum top hook to spindle: 347mm
Maximum bottom hook to spindle: 877mm
Minimum bottom hook to spindle: 377mm

Specific locks and keeps are designed to suit timber or composite door profiles.

Non-handed reversible latch.

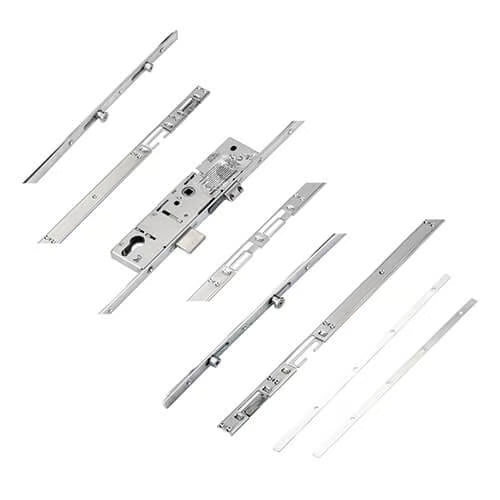

Supplied with:

• Central gearbox section
• x2 hook extension pieces
• x1 latch and deadbolt
• x2 hook and roller keeps
• x2 frame fixing tabs
• Adjustable packers to suit any profile

Supplied boxed in singles.

This comprehensive specification ensures that the V-MPLT lock is adaptable and efficient for various installations, providing a reliable solution for your door security needs. Whether you're working with timber or composite doors, the included components facilitate a seamless installation process, allowing you to meet diverse customer requirements with ease.
