Latch Deadbolt 2 Hook 2 Roller Lift Lever UPVC Repair Multipoint Door Lock

Product Overview: V-MPL Repair Lock

The V-MPL is the ultimate solution for your multipoint lock repairs, boasting the largest range of backsets available on the market. Its design offers unparalleled flexibility, making it the ideal choice for replacing existing locks with ease.

Key Features:

• Comprehensive Security: With 500mm of serrations, this repair lock accommodates shootbolts, enhancing security for your doors.

• Tailored for PVCu Doors: Supplied with specific keeps, the V-MPL is perfectly suited for PVCu installations.

• User-Friendly Design: The non-handed gearbox allows for easy latch reversal, and the deadbolt features a robust 20mm projection when engaged.

• Optimized Performance: Adjustable roller cams ensure optimal gasket compression, improving both heat and sound insulation.

• Enhanced Protection: Hooks equipped with hardened steel inserts provide superior resistance against forced entry.

• Versatile Sizing: Available in 35mm and 45mm options, these repair locks feature a split spindle and can be cropped to fit most multipoint locks in the UK market.

Installation Instructions:

• Latch Reversal: Insert a flat-bladed screwdriver into the small rectangular slot above the spindle while pulling out the latch. Reverse the latch and reinsert it.

• Nightlatch Reversal: Remove the latch to access a small screw. Use a small bladed screwdriver to turn the screw 180 degrees, then return the latch to its correct position.

For compatible shootbolts, please refer to the related products section on this page.

VERSA - Your Repair Solution

VERSA products are engineered to empower you to complete repairs efficiently in a single visit. Our retrofit solutions offer a variety of options, saving you time and ensuring you can tackle jobs swiftly.

• Versatile Range: Our UPVC door and window repair products can be adjusted to meet the specific requirements of each job, allowing you to cut costs and minimize inventory.

• Streamlined Stocking: With VERSA, you only need to keep one of each versatile product on hand to handle all emergency replacements.

Say Goodbye to:

• Job cancellations due to waiting for parts.
• The hassle of finding exact replacement products.
• Overloading your van with stock that may never be used.

Choose V-MPL and VERSA for a seamless, efficient repair experience.

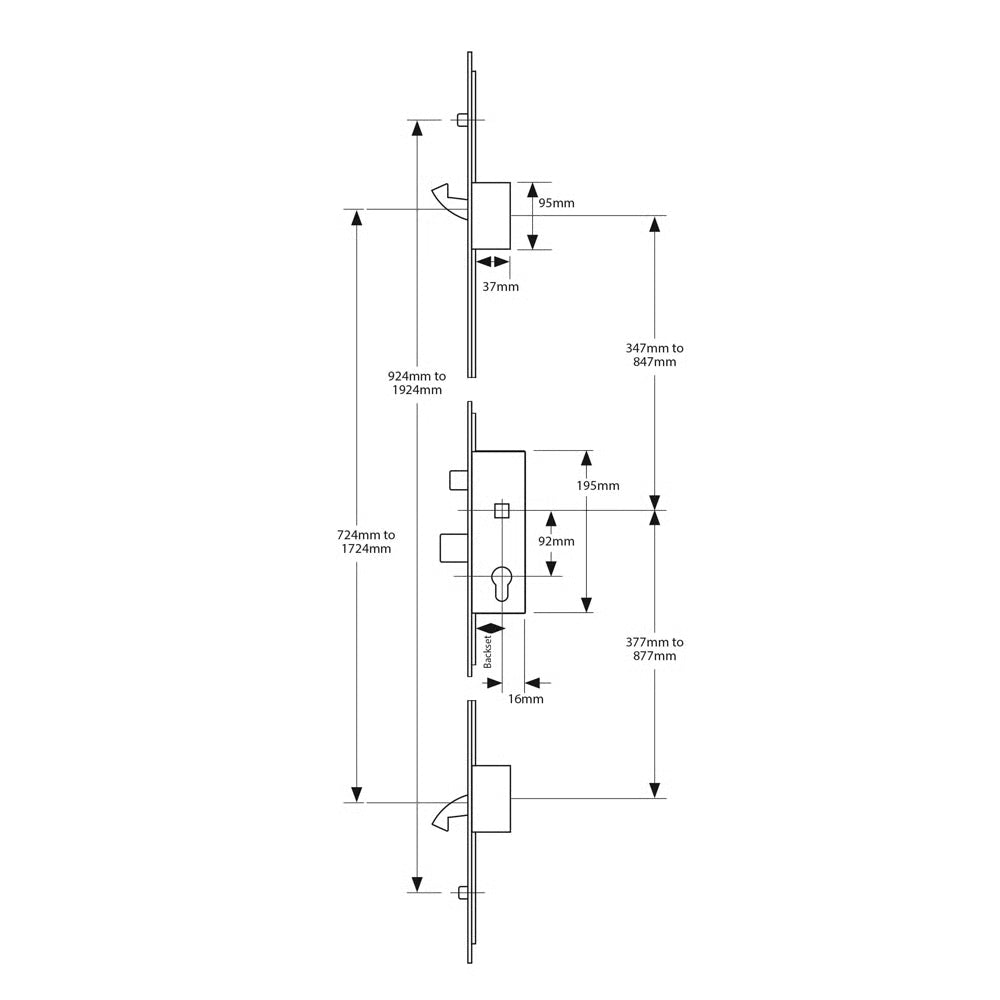

Product Specification

Available in 25mm, 28mm, 30mm, 35mm, 40mm, 45mm backsets and 16mm and 20mm faceplates.

Centres: 92mm

Length: Maximum 2430mm, Minimum: 1405mm

Case Height: 195mm

Case Depth: Backset + 16mm

Maximum top hook to spindle: 847mm

Minimum top hook to spindle: 347mm

Maximum bottom hook to spindle: 877mm

Minimum bottom hook to spindle: 377mm

Specific locks and keeps are designed to suit PVCU wood or composite door profiles.

Non-handed, reversible latch.

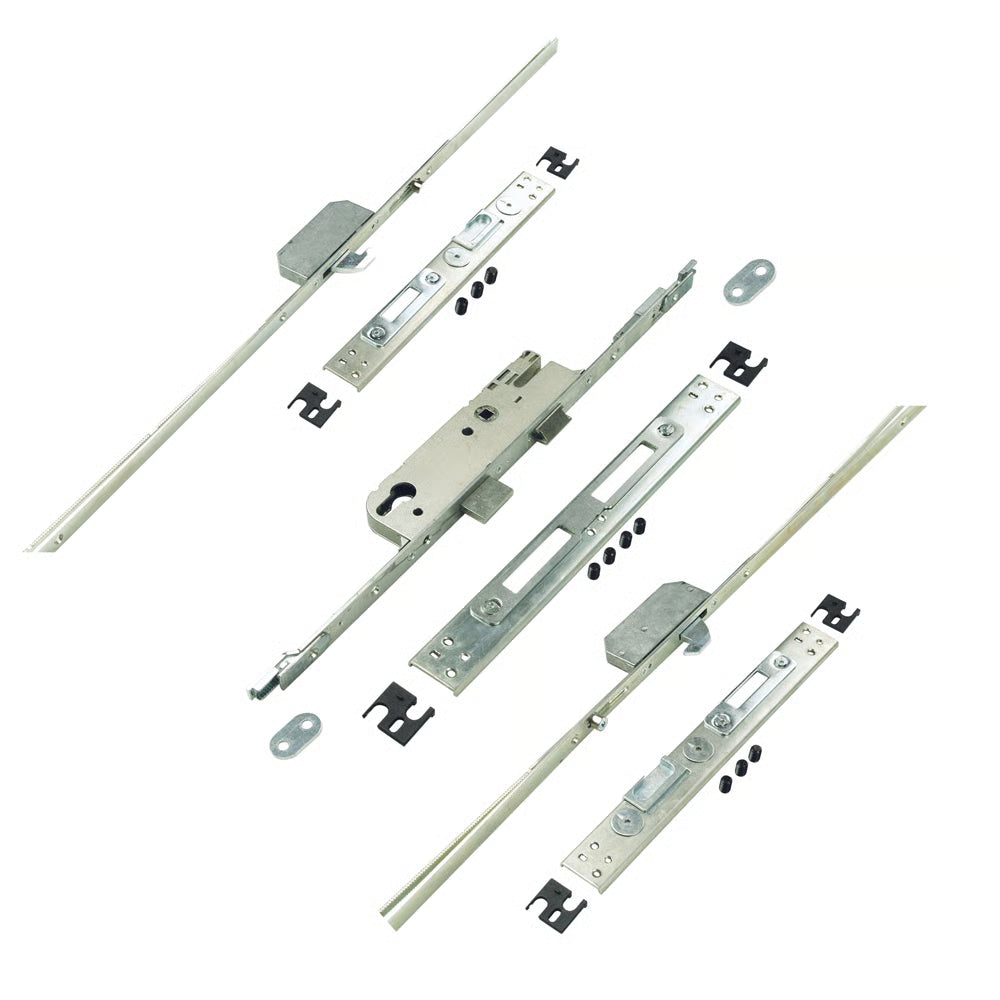

Supplied with:

• Central gearbox section
• x2 hook/roller extension pieces
• x1 Latch and deadbolt keep
• x2 Hook and roller keeps
• x2 frame fixing tabs
• Adjustable packers to suit any profile

Supplied boxed in singles.

This comprehensive specification ensures that the V-MPL Repair Lock meets a wide range of installation needs, providing flexibility and reliability for various door types. Whether you're working with PVCU, wood, or composite doors, the V-MPL is designed to deliver optimal performance and security.
