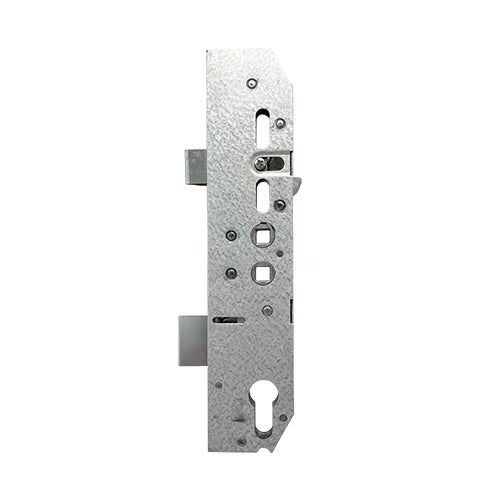

Product Overview: Coldseal Gearbox
Upgrade your locking system with the Coldseal gearbox, designed to convert single spindle versions to double spindle configurations. This versatile gearbox is available in both latch-only and latch with deadbolt options, ensuring you have the right fit for your security needs.
Key Features:
-

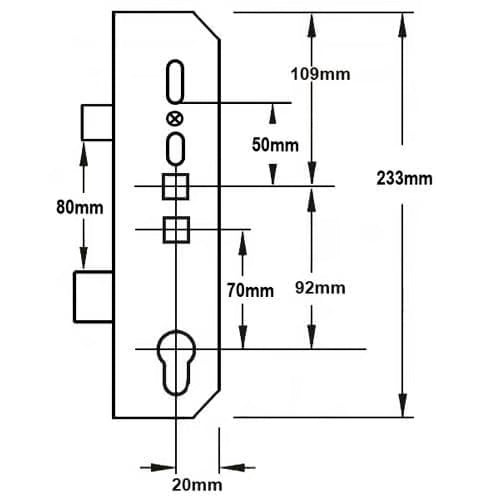

Dimensions:
- Case Height: 233mm
- Case Width: 55mm
- Backset: 35mm (Note: Measure from the edge of the door to the center of the keyhole)
-
Latch and Deadbolt Measurements:
- Latch Height: 20mm
- Deadbolt Height: 30mm
- Distance between Latch and Deadbolt: 80mm
-
Compatibility:
- Designed for older locks with inline connectors. Adapting the drive gear may be necessary for proper functionality.
-
Operation:
- Lift lever or double spindle operation for ease of use.
-
Latch Reversal:
- Easily reverse the latch by undoing the screw, flipping it, and reinserting.
Locking Mechanism:
To lock the door:
- Close the door to engage the latch automatically.
- Lift the handle to activate additional locking points.
- Throw the deadbolt and secure the system by turning the key.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Product Specifications:
- Manufacturer: Coldseal
- Centres PZ: 92mm/70mm (Note: Measure from the center of the keyhole to the center of the handle)
- Copy/Genuine: Copy
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Double 8mm
- Packaging: Supplied in singles
Important Considerations: When replacing a gearbox, be aware of older locks that may feature an offset or cranked connector. Ensure to follow the technical guide for adapting the drive gear to maintain functionality.
Upgrade your security with the Coldseal gearbox and enjoy enhanced locking capabilities!
