Product Overview: Safeware Multipoint Door Lock

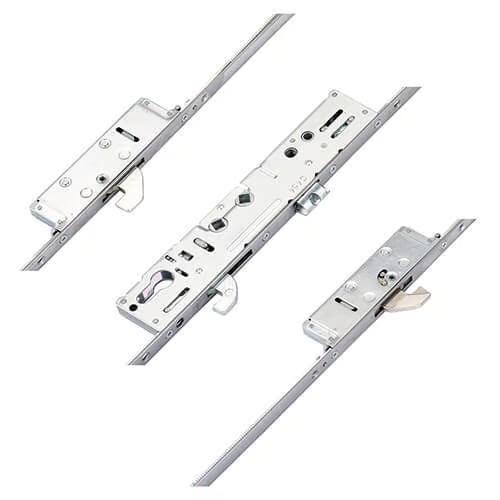

The Safeware multipoint door lock is engineered for superior security and versatility, featuring 3 hooks and 1 latch. This lock is designed to fit a wide range of Epwin Window Systems doors, offering a unique design that enhances the traditional Lockmaster product.
Key Features:
-
Gearbox Design: The lock includes a gearbox with a central hook, which is an extended version of the Lockmaster centre case. It is available in double spindle operation with 92mm and 62mm PZ measurements.
-
Dimensions: Safeware gearboxes are the largest in the market, measuring 255mm high and 50mm wide. The latch and hook each measure 30mm high, with an 80mm distance between them.
-
Installation: The long gearboxes secure to their faceplates with four screws, ensuring a robust installation. The screw placements are strategically designed for optimal stability.
-
Bi-Directional Hooks: The hooks are bi-directional, moving towards each other when thrown, which enhances security.
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Lift the handle to engage the locking points.
- Turn the key to lock the system.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Latch Reversal:
To reverse the latch, simply undo the screws, remove the latch, reverse it, and reinsert the screws.
Compatibility:
This lock is suitable for various door materials, including UPVC, aluminium, timber, and composite doors.
Product Specifications:
- Manufacturer: Safeware
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 92mm/62mm (refer to measurement guide)
- Faceplate: Selectable (refer to measurement guide)
- Spindle Size: 8mm
- Hooks: 3
- Latch: 1
- Main Gearbox: Latch & hookbolt
- Operation: Selectable
- Spindle: Double 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1290mm
- Height: 2096mm
- Top Hook to Spindle: 645mm
- Bottom Hook to Spindle: 645mm
