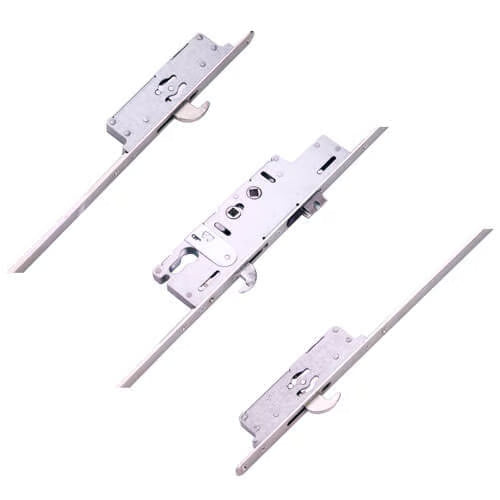

Latch 3 Hooks Double Spindle Multipoint Door Lock

Ingenious Professional Multipoint Door Lock

The Ingenious Professional multipoint door lock is engineered for security and convenience, featuring 3 hooks and 1 latch, making it an ideal choice for composite doors.

Key Features:

• Faceplate Dimensions: 20mm faceplate designed for durability.

• Identification: Look for the brand stamped on the faceplate or the Secured By Design logo. A small black snib below the latch can also help in identification, but be cautious as other brands may have similar features.

• Gearbox Design: Ingenious gearboxes have a unique double spindle arrangement with centers at 62mm and 92mm. The top corner of the gearbox is cut out for easy installation.

• Dimensions:

  • Overall height: 230mm
  • Screw hole spacing: 110mm (top to middle), 108mm (middle to bottom)
  • Hook and latch height: 30mm, with a distance of 75mm between them.

• Backset Measurement: When measuring the backset, account for 2-3mm for the faceplate. For instance, a 35mm backset gearbox will measure 32mm when not fixed.

• Snib Feature: A small plastic snib on the faceplate allows for convenient latch holding, preventing accidental lockouts.

• Hook Variants:

  • Standard Hook: Throws upwards.
  • Duplex Hook: Higher security with cast zinc hooks that throw towards each other, resembling crab claws. Ensure the routing on the door accommodates the larger hook case if upgrading.

Operation Instructions:

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Latch Reversal:

To reverse the latch, simply undo the screw, remove the latch, reverse it, and reinsert before replacing the screws.

Product Specifications:

• Manufacturer: Ingenious
• Backset: Select from drop-down options.
• Centres PZ: 92mm/62mm
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Operation: Select from drop-down options.
• Spindle: Double 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1420mm
• Height: 1614mm
• Top Hook to Spindle: 710mm
• Bottom Hook to Spindle: 710mm
• Door Material: Timber, Composite

Explore our range of associated products for Ingenious Professional multipoint door locks, including keeps, spindles, handles, and accessories to enhance your security solutions.
