Description

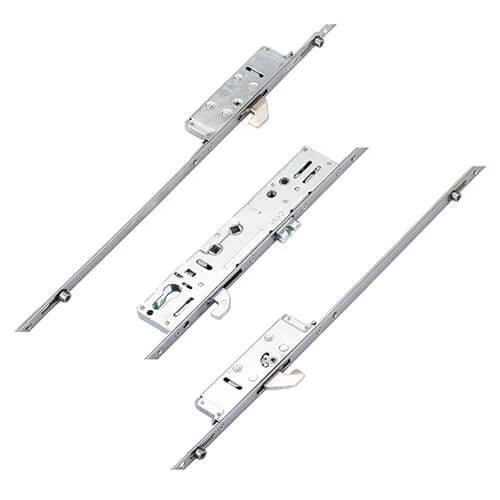

Product Overview: Safeware Multipoint Door Lock
The Safeware multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 4 rollers, 3 hooks, and 1 latch. This lock is specifically engineered to fit a wide range of Epwin Window Systems doors, offering a unique design that builds upon the trusted Lockmaster product line.
Key Features:
-
Gearbox Design: The lock includes a gearbox with a central hook, which is an extended version of the Lockmaster centre case. This design ensures a secure fit and reliable operation.
-
Versatile Locking Mechanism: Available in three distinct designs, the Safeware locks incorporate hooks, rollers, and a hook/deadbolt combination for versatile security options.
-

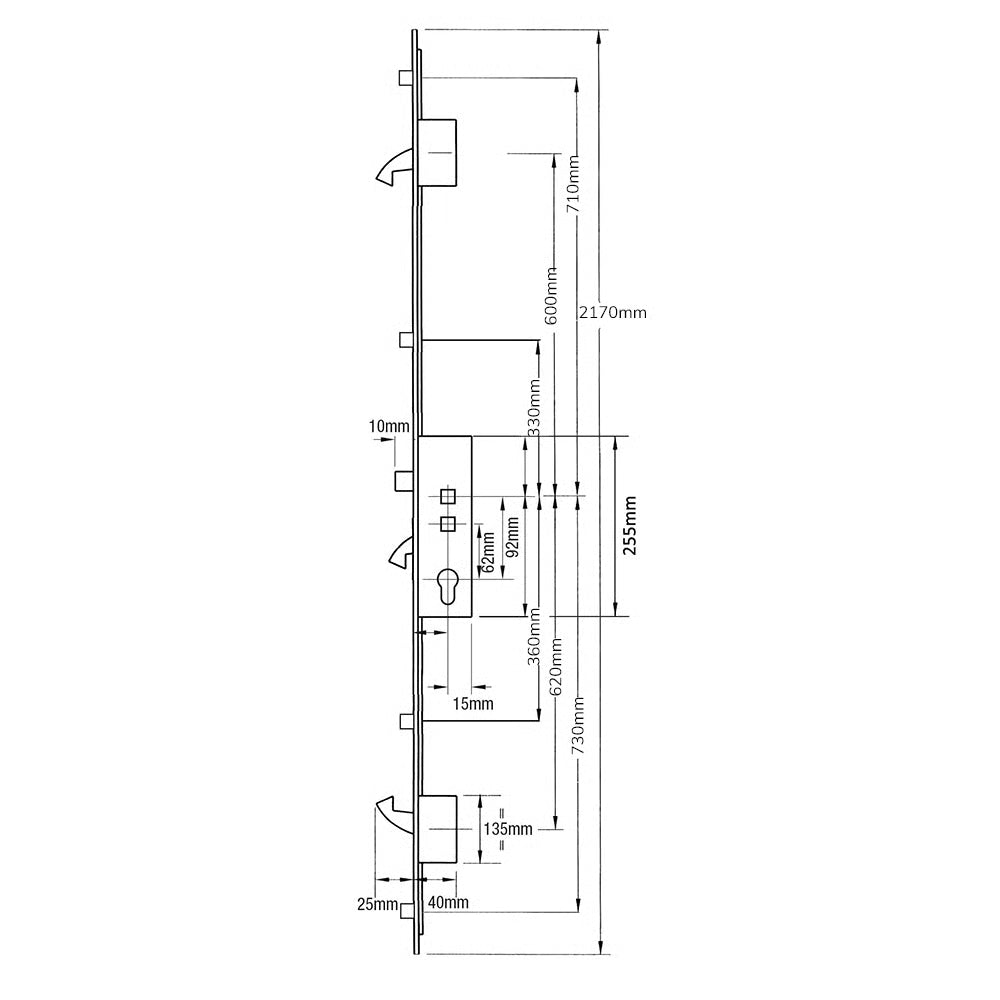

Dimensions: The Safeware gearboxes are the largest in the market, measuring 255mm high and 50mm wide. The latch and hook both measure 30mm high, with an 80mm distance between them.
-
Secure Fixing: Due to the length of the gearboxes, they are secured to their faceplates with four screws, ensuring stability and reliability.
-
Bi-Directional Hooks: The hooks are designed to move towards each other when thrown, providing enhanced security against forced entry.
-
Roller Functionality: The rollers serve to compress the door against the frame, preventing dust and water ingress while also helping to maintain the door's structural integrity.
Operation Instructions:
To lock the door:
- Close the door to automatically engage the latch.
- Lift the handle to engage the locking points.
- Turn the key to secure the system.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Product Specifications:
- Manufacturer: Safeware
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 92mm/62mm (measurement guide available)
- Spindle Size: 8mm
- Operation: Double spindle
- Handing: Non-handed
- Material Compatibility: Suitable for UPVC and aluminium doors
Additional Information:
We offer a comprehensive range of associated products for the Safeware multipoint door locks, including keeps, spindles, handles, and other accessories. For latch reversal, simply undo the screws, reverse the latch, and reinsert the screws.
This multipoint door lock is an excellent choice for those seeking a reliable and secure locking solution for their UPVC or aluminium doors.
