Description
Product Overview

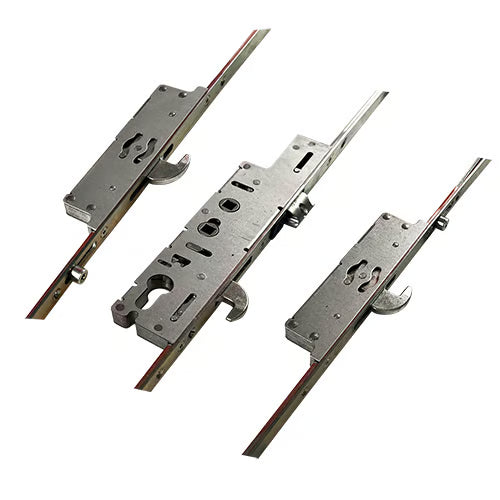

Introducing the Ingenious Multipoint Door Lock, designed for enhanced security and durability. This lock features a robust configuration with 2 hooks and 4 rollers, ensuring your door remains securely fastened. Available with a 35mm backset, it also includes attachments for top and bottom shootbolts, making it a versatile choice for various door types.
Key Features
- Manufacturer: Avocet
- Backset: 35mm (select from drop-down)
- Centres PZ: 92mm/62mm (guidance on measurement available)
- Faceplate: Customizable (select from drop-down)
- Spindle Size: 8mm
- Rollers: 4
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Combination of latch & deadbolt
- Operation: Customizable (select from drop-down)
- Spindle: Double 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 502mm
- Distance Between Outer Locking: 1239mm
- Distance Between Hooks: 1040mm
- Height: 2200mm
- Compatible Door Materials: UPVC, Aluminium
Installation Guidance
For optimal performance, ensure accurate measurements for backset, centres, and faceplate. Refer to the provided links for detailed instructions on how to measure these specifications correctly.
Security Assurance
This multipoint lock is engineered to provide maximum security, making it an ideal choice for residential and commercial applications. With its sturdy construction and advanced locking mechanism, you can trust that your property is well-protected.
Explore our selection today and enhance your door security with the Ingenious Multipoint Door Lock!
