Description

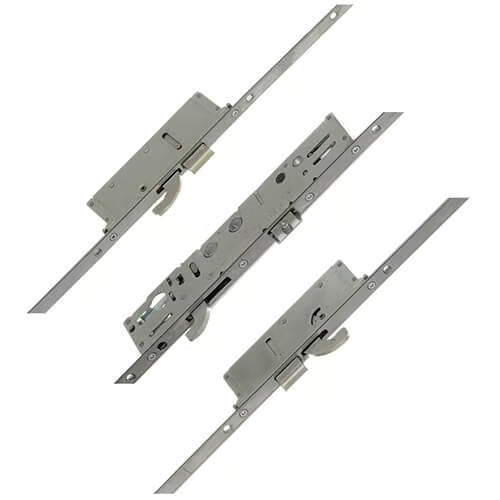

Product Overview: Safeware Multipoint Door Lock
The Safeware multipoint door lock is designed for enhanced security and versatility, featuring a robust configuration of 3 hooks, 2 deadbolts, and 1 latch. This lock is compatible with a variety of door materials, including UPVC, aluminium, timber, and composite.
Key Features:
-
Gearbox Design: The lock incorporates a gearbox with a central hook, extending the functionality of the Lockmaster centre case. The design is unique to Safeware, ensuring a reliable locking mechanism.
-
Versatile Locking Points: Available in three distinct designs, Safeware locks offer hooks, rollers, and hook/deadbolt combinations to suit different security needs.
-
Dimensions: The Safeware gearboxes are the largest in the market, measuring 255mm high and 50mm wide. The latch and hook each measure 30mm high, with an 80mm distance between them.
-
Secure Installation: The elongated design allows for secure installation with four screws, ensuring stability and durability.
-
Bi-Directional Hooks: The hooks are bi-directional, enhancing security by moving towards each other when engaged.
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Lift the handle to engage the locking points.
- Turn the key to secure the system.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Additional Information:
-
Latch Reversal: To reverse the latch, simply undo the screws, reverse the latch, and reinsert the screws.
-
Associated Products: We offer a range of accessories for Safeware multipoint door locks, including keeps, spindles, and handles.

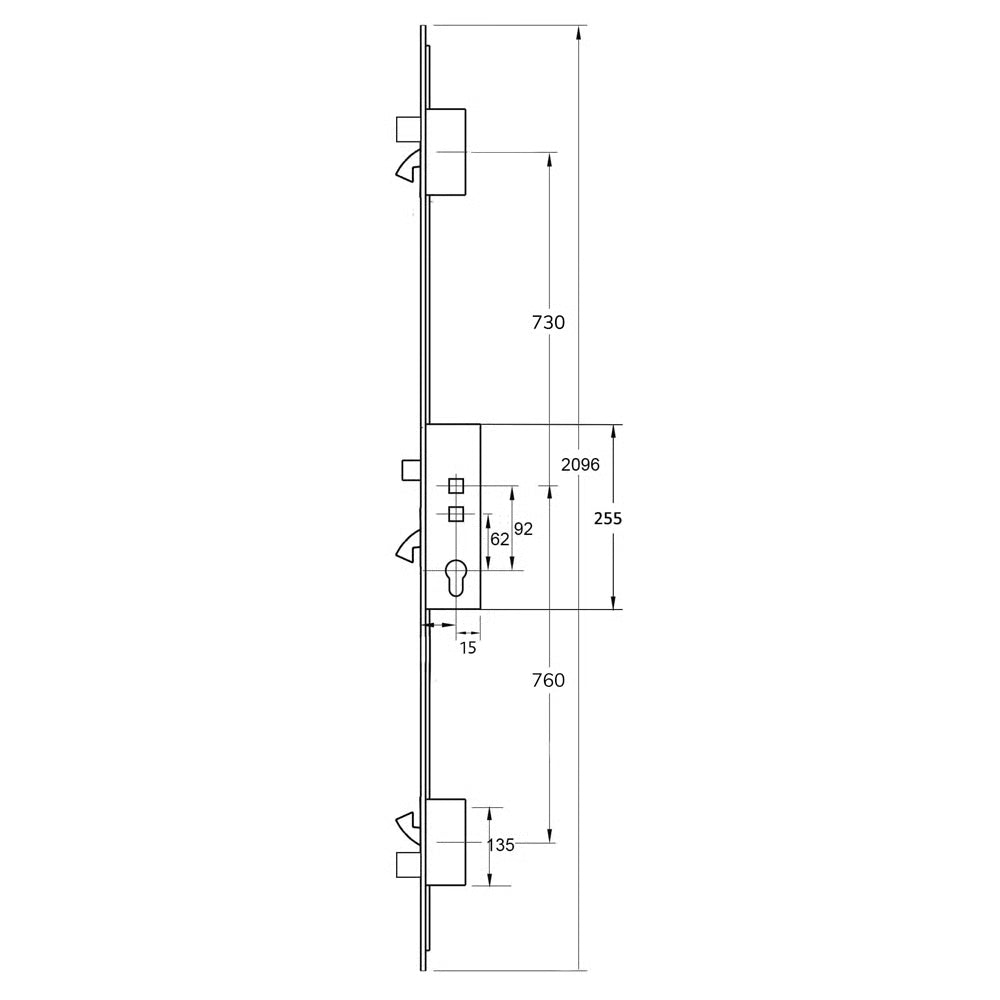

Product Specifications:
- Manufacturer: Safeware
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 92mm/62mm (measurement guide available)
- Faceplate: Selectable (measurement guide available)
- Spindle Size: 8mm
- Operation: Double spindle
- Handing: Non-handed
- Distance Between Inner Locking: 1300mm
- Distance Between Outer Locking: 1380mm
- Height: 2096mm
- Top Hook to Spindle: 650mm
- Bottom Hook to Spindle: 650mm
This Safeware multipoint door lock is an excellent choice for those seeking a reliable and secure locking solution for various door types.
