Product Overview: Sobinco Multipoint Door Lock

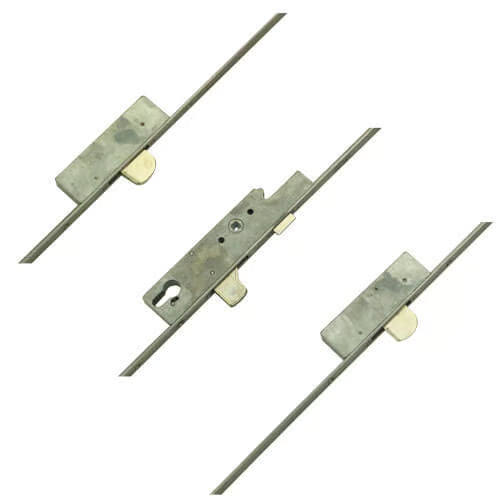

The Sobinco multipoint door lock is engineered for security and reliability, featuring 3 deadbolts and 1 latch. Crafted in Belgium, these high-quality locks are predominantly used on aluminum doors, ensuring durability and performance.
Key Features:
-
Unique Design: The Sobinco lock incorporates a distinctive "drop bolt" mechanism, combining the functionality of a hook and deadbolt. This design allows the bolts to drop into place as the lock engages, providing enhanced security.
-
Versatile Compatibility: Commonly found on aluminum doors, Sobinco locks are often rebranded by manufacturers like Raynaers and Aliplast, but they maintain the same robust locking mechanism.
-
Standard Locking Positions: All Sobinco locks feature consistent locking positions, with a top drop bolt at 720mm and a bottom drop bolt at 760mm from the spindle, adhering to the classic 1490mm locking centers configuration.
-
Faceplate Options: The lock is available with various faceplate sizes, including:
- 16mm
- Flat 20mm (square edges)
- Flat 24mm (square edges)
- U-shaped 22mm x 6.5mm
- U-shaped 24mm in two sizes: 24mm x 5mm and 24mm x 6.5mm
-
Gearbox Variants: Sobinco gearboxes come in 30mm, 35mm, and 40mm backsets, designed specifically for aluminum doors. They operate on a single spindle with key wind functionality.
Specifications:
- Manufacturer: Sobinco
- Backset: Selectable from drop-down options
- Centres PZ: 92mm
- Faceplate: Selectable from drop-down options
- Spindle Size: 8mm
- Deadbolts: 3
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Selectable from drop-down options
- Spindle: Single 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 2170mm
- Top Deadbolt to Spindle: 720mm
- Bottom Deadbolt to Spindle: 760mm
Operation Instructions:
To Lock the Door:
- Close the door to automatically engage the latch.
- Turn the key to throw and engage the locking points.
To Unlock the Door:
- Turn the key to unlock by "unwinding" the locking points.
- A further quarter turn will retract the latch.
Additional Products:
We offer a comprehensive range of associated products for Sobinco multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything you need for installation and maintenance.
Whether you're looking for a lock for UPVC, aluminum, timber, or composite doors, the Sobinco multipoint door lock is a reliable choice for enhanced security.
