Description
Product Overview
The Union L2C26 Euro Escape Sashlock Case is engineered for seamless operation, allowing for a single lever exit. This lock is ideal for doors that do not require exit devices to meet BS EN 1125 or BS EN 179 standards.
Key Features
-
Dual Operation: The latch bolt can be withdrawn from both sides using the lever, while the deadbolt is operated from the inside lever and via key access from the outside.
-
Versatile Installation: Designed for timber doors, this lock can be installed on either side thanks to its reversible latch bolt and escape mechanism. It is also EN 1634-1 assessed for use on 60-minute timber fire doors, ensuring compliance with DDA legislation and satisfying BS8300 and Approved Document M (ADM).
-
Compatibility: While primarily intended for timber doors, the lock is also suitable for steel and composite doors, although special fixings will be necessary.

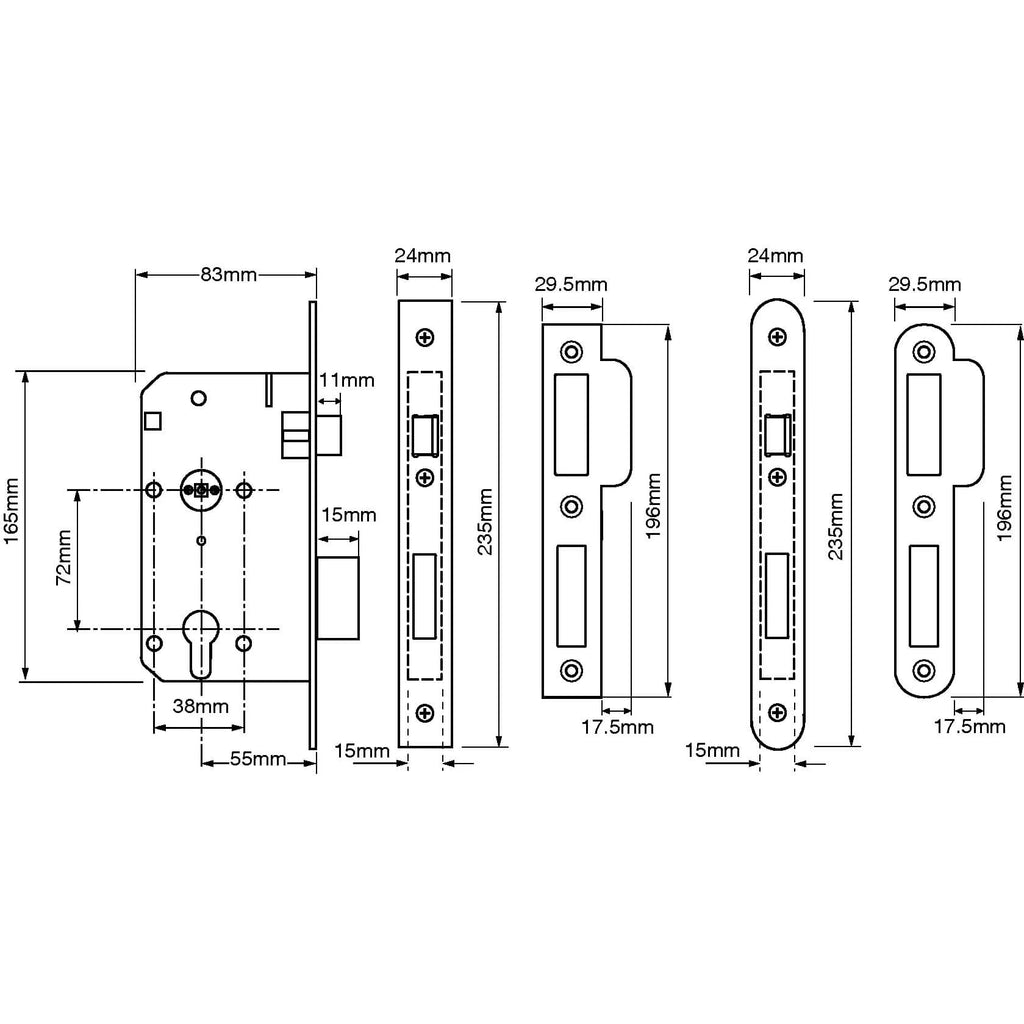

Product Specifications
- Faceplate Dimensions: 235mm x 24mm
- Forend Screw Centres: 205mm
- Escutcheon Screw Centres: 38mm
- Case Height: 165mm
- Case Width: 83mm
- Bolt Throw: 15mm
- Centre Measurements: 72mm
- Spindle Size: 8mm

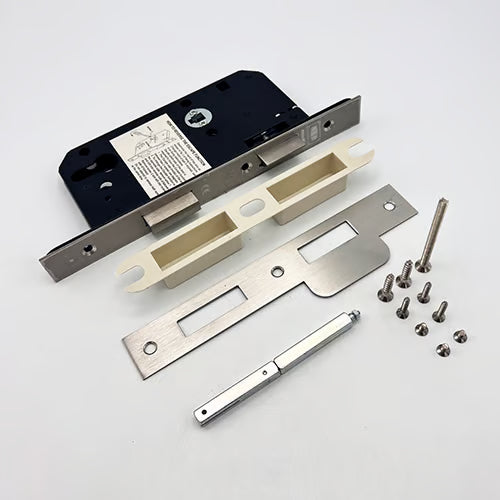

- Included Accessories: Supplied with a matching strike plate and available in singles, with an outer box quantity of 10.
This lock combines functionality with compliance, making it a reliable choice for various door types.
