Description
Product Overview

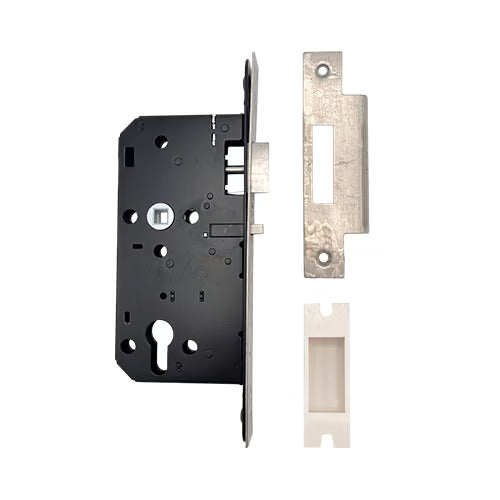

Introducing the Union L2C25 Euro Deadlocking Nightlatch, expertly designed for timber doors. This versatile lock is non-handed, featuring an easily reversible stainless steel latch bolt, allowing for installation on either the left or right side of the door.
Key Features
-
Easy Operation: Withdraw the latch by turning the key from the outside or using the handle from the inside.
-
Enhanced Security: The latchbolt is automatically locked by an anti-thrust bolt when the door is closed, ensuring maximum security.
-
Compatibility: This lock is designed to accommodate bolt-through furniture with 38mm centres and is suitable for unsprung lever furniture weighing up to 0.75kg.
-
Fire Safety Compliance: EN 1634-1 assessed for use on 60-minute timber fire doors, aiding in compliance with DDA legislation, BS8300, and Approved Document M (ADM).
-
Versatile Use: While primarily for timber doors, it can also be used on steel and composite doors with special fixings.

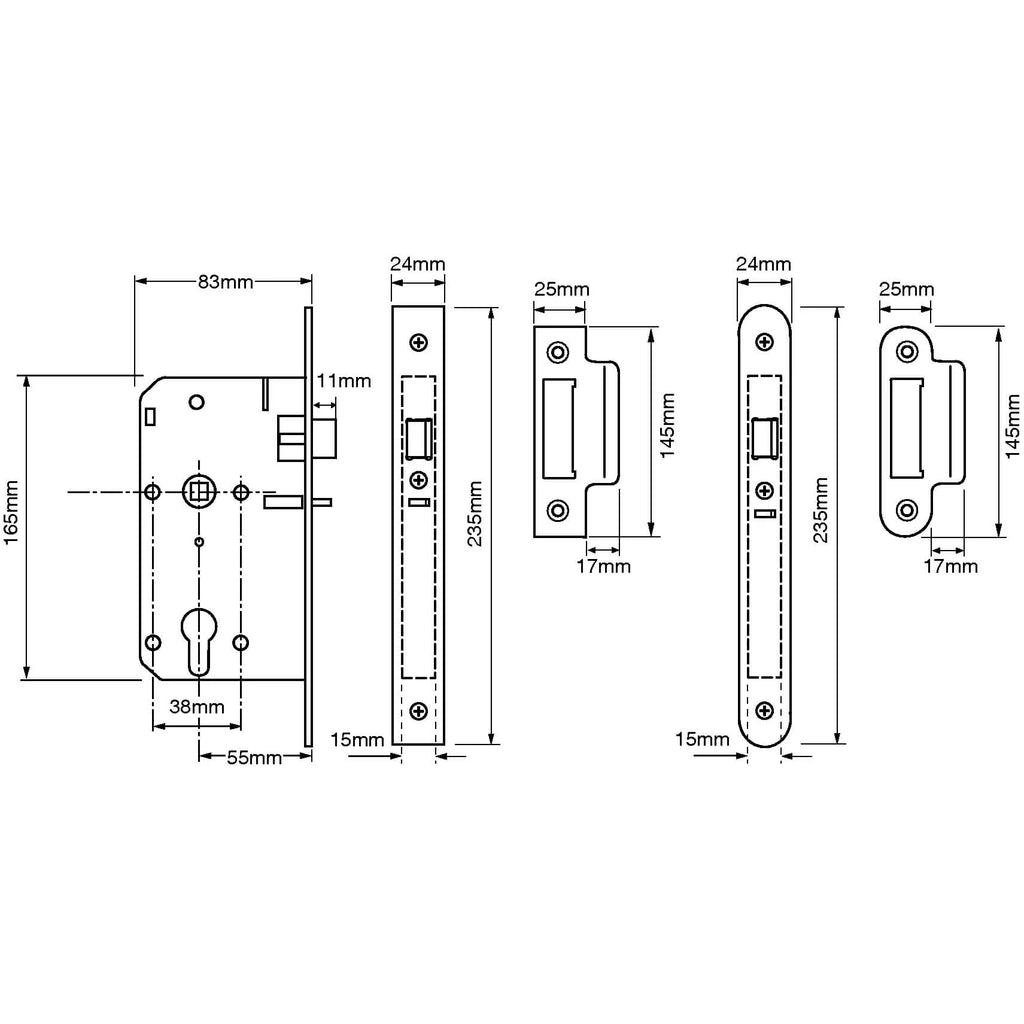

Product Specifications
- Faceplate Dimensions: 235mm x 24mm
- Forend Screw Centres: 205mm
- Escutcheon Screw Centres: 38mm
- Case Height: 165mm
- Case Width: 83mm
- Centre Measurement: 72mm
- Spindle Size: 8mm

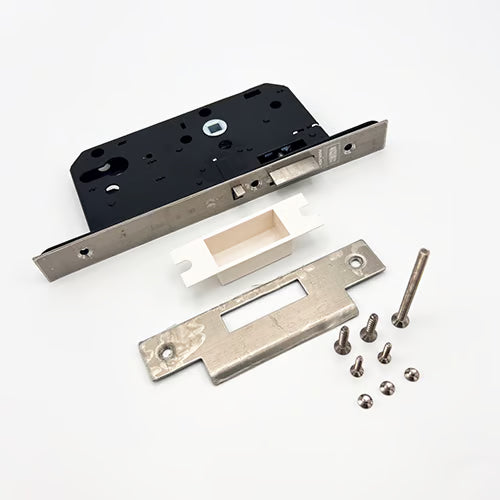

- Packaging: Supplied with a matching strike plate, available in singles, with an outer box quantity of 10.
This Union L2C25 Euro Deadlocking Nightlatch combines functionality with security, making it an ideal choice for your door locking needs.
