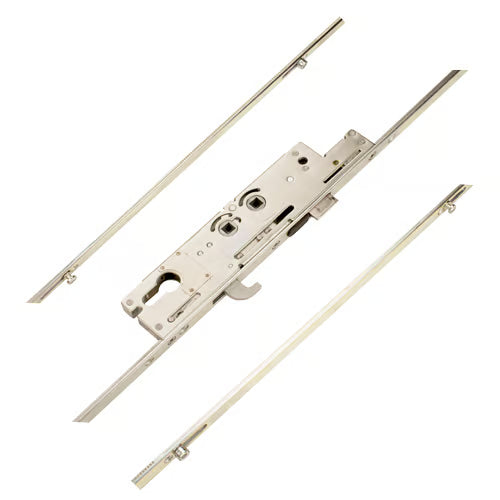

L Latch Hook 2 Rollers 2 Mushrooms Lift Lever or Double Spindle Multipoint Door Lock

Fullex XL Multipoint Door Lock Overview

The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes 2 rollers, 2 mushrooms, 1 hook, and 1 latch. This lock is ideal for both UPVC and aluminium doors, ensuring a secure fit for various applications.

Key Features:

• Security Design: The XL lock incorporates three hooks and two steel anti-lift pins, providing enhanced security. The option for two or four roller cams ensures smooth operation and effective compression.

• Versatile Configurations: Available in double, single, or split spindle gearbox options, the XL lock can function as a lift lever lock, double spindle nightlatch, or split spindle nightlatch, making it adaptable to your needs.

• Easy Identification: Look for the Fullex logo stamped on the faceplate. The unique cut-out in the top corner of the gearbox is a distinctive feature of the XL lock.

• Extendable Design: Each XL lock is extendable at both the top and bottom, allowing for flexibility in installation. When paired with Fullex high-security shoot bolts, the system meets PAS24 requirements.

• Durable Gearboxes: Fullex XL gearboxes come in 35mm and 45mm backsets, with consistent dimensions of 227mm high plus the backset. They are secured with three equidistant screws for stability.

• Corrosion Resistance: Rated to BS EN 1670 Grade 4 for 240 hours, ensuring longevity and durability in various environments.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Product Specifications:

• Manufacturer: Fullex
• Backset: Select from drop-down options
• Centres PZ: 92mm/62mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Rollers: 2
• Mushrooms: 2
• Hooks: 1
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Operation: Select from drop-down options
• Spindle: Double 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 719mm
• Distance Between Outer Locking: 1409mm
• Height: 2200mm
• Top Roller to Spindle: 690mm
• Bottom Roller to Spindle: 719mm
• Top Mushroom to Spindle: 345mm
• Bottom Mushroom to Spindle: 374mm
• Door Material: UPVC, Aluminium

Additional Information:

We also offer a range of associated products for the Fullex XL multipoint door locks, including keeps, spindles, handles, and accessories. For latch reversal, simply undo the screw in the latch, reverse it, reinsert, and replace the screw.

Ensure your door is equipped with the best in security with the Fullex XL multipoint door lock!
