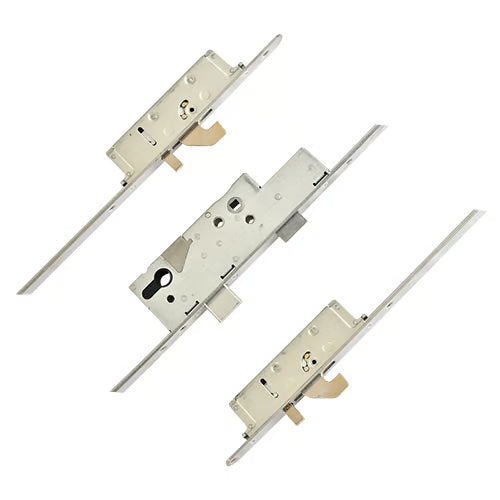

Key Turn Latch Deadbolt 2 Hooks 2 Anti Lift Pins Key Wind Multipoint Door Lock

Product Overview: Lockmaster Key Turn Multipoint Door Lock

The Lockmaster Key Turn multipoint door lock is engineered for modern doors, combining security and convenience with its robust design. This lock features:

• 2 Hooks
• 1 Deadbolt
• 1 Latch
• 2 Anti Lift Bolts

Key Features:

The Yale Lockmaster Key Turn lock is designed for contemporary timber and composite doors. It utilizes a key wind mechanism, ensuring that the door can only be closed with the key retracting the latch.

Available in two styles:

• Classic: Main gearbox positioned centrally.
• Heritage: Main gearbox located at the height of traditional timber door night latches.

These locks are typically paired with modern pull handles, enhancing their aesthetic appeal.

Distinctive Design:

The Key Turn gearbox stands out from regular Lockmaster gearboxes, featuring a unique design with a corner removed. It is available exclusively in a 45mm backset.

Installation Notes:

• Gearboxes are secured to faceplates with three screws and are not interchangeable with other Lockmaster locks.
• When measuring the backset, account for an additional 2-3mm for the faceplate. For instance, a 28mm backset gearbox will measure 25mm when detached from the strip.

Operation: Key Wind

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Turn the key to throw and engage the locking points.

To Unlock the Door:

1. Turn the key to unlock by unwinding the locking points.
2. A further quarter turn retracts the latch.

Compliance and Testing:

• PAS24 compliant
• Secured by Design approved
• Tested for over 200,000 cycles
• Salt spray tested to BS EN 1670 grade 4 for 240 hours
• Proudly manufactured in the UK

Associated Products:

We offer a variety of related products for the Lockmaster Key Turn multipoint door locks, including keeps, spindles, handles, and accessories.

Product Specifications:

• Manufacturer: Lockmaster
• Backset: Select from drop-down (see measuring guide)
• Centres PZ: 92mm (see measuring guide)
• Faceplate: Select from drop-down (see measuring guide)
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down (see operation guide)
• Spindle: Single 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1544mm
• Height: 1770mm
• Top Hook to Spindle: 775mm
• Bottom Hook to Spindle: 769mm
• Door Material: Timber, Composite

This Lockmaster Key Turn multipoint door lock is an excellent choice for those seeking enhanced security and modern functionality in their door hardware.
