Description
Product Overview

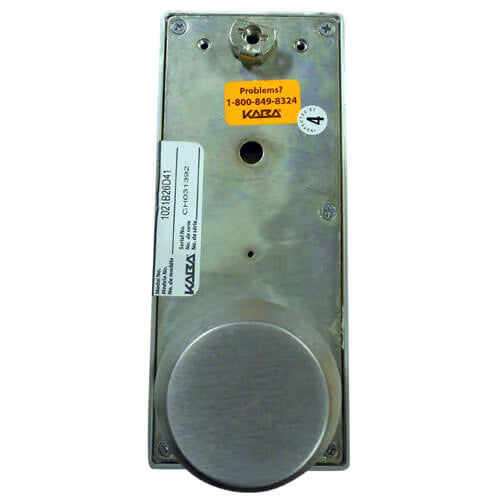

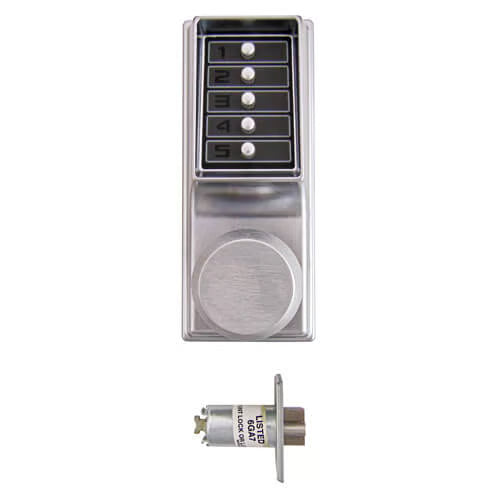

The Simplex 1000 Series is designed for exterior access through a combination code, ensuring easy egress. This mechanical lock, which includes a knob option, eliminates the need for battery replacements, offering a single access code that can be programmed directly via the keypad without removing the lock from the door.
Key Features
-
Durable Construction: This heavy-duty, commercial-quality lock is widely used in healthcare, educational, and business facilities.
-
Model Variations: The 1000 range includes various models. The standard unit does not feature passage mode or key override. For those options, refer to:
- Key Override Model: SKU 10002S
- Passage Mode Model: SKU 10003S
-

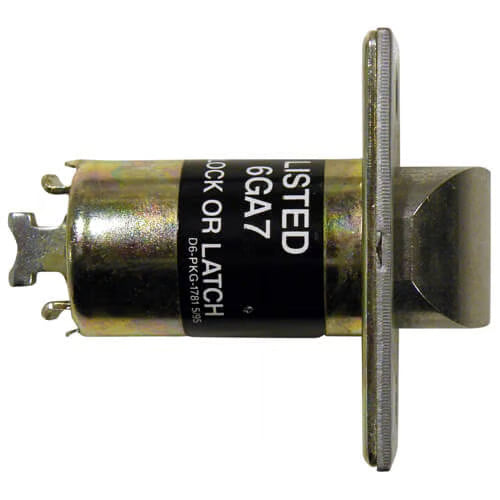

Included Components: Each unit comes with a 70mm backset Kaba latch, fitting template, installation tools, instructions, and necessary fixings.
Important Notes
-
Returns Policy: This product is not eligible for our standard returns procedure. Repairs will be handled by the manufacturer, and products may undergo checks according to their replacement policy.
-
Fire Door Usage: Following dormakaba’s guidance, Simplex mechanical and electronic push button locks should not be installed on fire doors until new EN12209 test certificates and CE markings are obtained. Updates will be provided once the locks are deemed suitable for fire door installation.
Product Specifications
- Access Method: Entry via code, exit via knob
-
Dimensions:
- Case Height: 187mm
- Case Width: 79mm
- Backset: 70mm
- Combinations: Over 1000 possible code options
- Code Length: 1-5 digits
- Door Thickness: Suitable for doors 35-57mm thick
- Handed: No
- Usage: Heavy duty
- Mechanism: Protective clutch mechanism
- Code Change: Fast code change while the unit is fitted to the door
- Compatibility: Can be used on rebated doors with the corresponding rebate
Repair Information
If the unit is faulty, it must be returned to the manufacturer for repair. A loan item may be available during the repair period; please contact customer services for more information.
