Product Overview

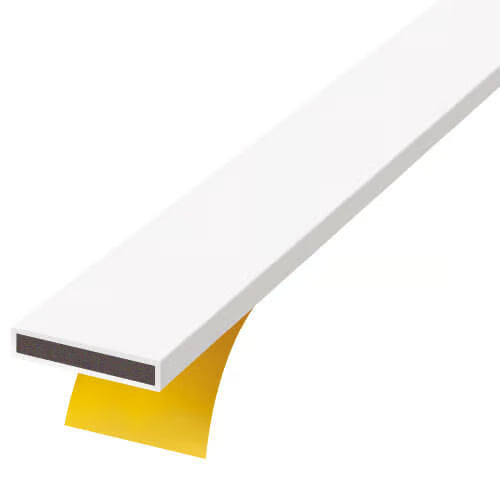

Introducing our advanced intumescent graphite-based fire seal, expertly designed to enhance the safety of door assemblies. Encased in a durable PVC sleeve, this innovative seal is engineered to expand significantly in the event of a fire, effectively sealing gaps around the door to prevent smoke and flames from spreading.
Key Features
-
Fire Safety Compliance: Certifire approved and rigorously fire tested to BS 476: Part 22 and BS EN 1634-1 standards, ensuring reliable performance in critical situations.
-

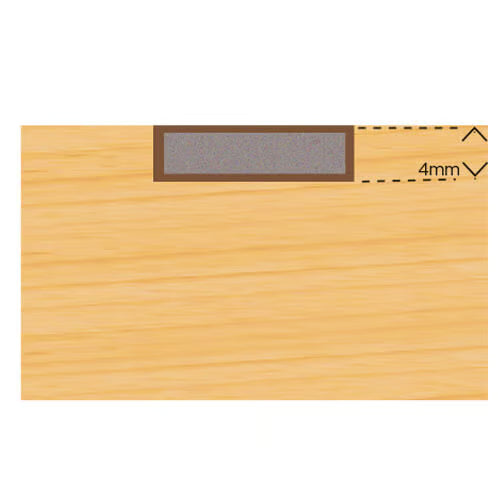

Size Options: Available in a variety of sizes to suit different door assembly requirements:
- 10mm x 4mm (Fire only) FD30
- 15mm x 4mm (Fire only) FD30 & FD60
- 20mm x 4mm (Fire only) FD60
Product Specifications
-
Dimensions:
- 2100mm x 10mm x 4mm
- 2100mm x 15mm x 4mm
- 2100mm x 20mm x 4mm
-
Performance Testing:
- 10mm and 15mm seals tested for 30 minutes to BS476 Part 22
- 20mm seal tested for 60 minutes to BS476 Part 22
- All sizes tested to EN1634-1 standards
- Endurance tested for 100,000 open/closed cycles
-
Packaging: Each fire seal is supplied in a protective plastic sleeve for easy handling and installation.
Conclusion
Ensure the safety and integrity of your door assemblies with our reliable intumescent fire seal. With proven performance and compliance with stringent fire safety standards, this product is an essential component for any fire safety strategy.
