Description
Product Overview

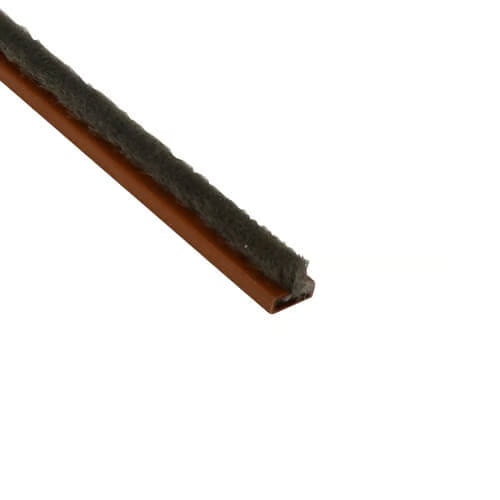

Introducing our advanced intumescent graphite-based fire and smoke seal, expertly designed for door assemblies. Encased within a durable PVC sleeve, this innovative seal is engineered to provide maximum protection in the event of a fire.
Key Features
-
Intumescent Technology: In the event of a fire, the seal expands significantly, effectively sealing the gap around the door to prevent the spread of smoke and flames.
-
Certifications: Our product is Certifire approved and has undergone rigorous fire testing to meet the standards of BS 476: Part 22, BS EN 1634-1, and smoke testing to BS 476: Part 31.1.
-
Versatile Sizes: Available in a range of sizes to suit various door assemblies:
- 10mm x 4mm (Fire & Smoke) FD30
- 15mm x 4mm (Fire & Smoke) FD30 & FD60
- 20mm x 4mm (Fire & Smoke) FD60
Product Specifications
-
Dimensions:
- 2100mm x 10mm x 4mm
- 2100mm x 15mm x 4mm
- 2100mm x 20mm x 4mm
-
Fire Resistance:
- Fire tested for 30 minutes with 10mm and 15mm to BS 476: Part 22
- Fire tested for 60 minutes with 20mm to BS 476: Part 22
-
Smoke Resistance:
- Smoke tested to BS 476: Part 31.1
-
Durability:
- Tested to BS EN1634-1
- Endured 100,000 open/closed cycles
-
Installation: Supplied in a convenient plastic sleeve for easy handling and installation.
-

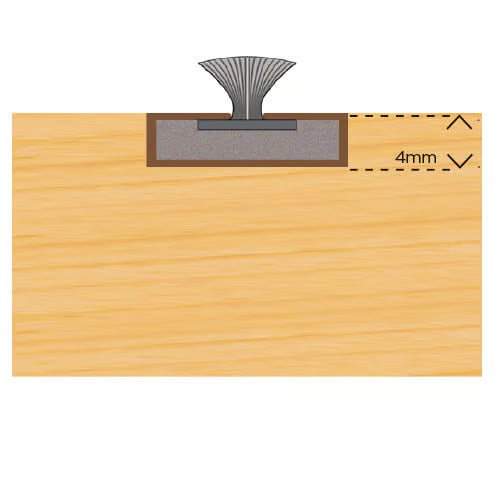

Height of Pile: The brush strip features a height of 6.5mm, with 4.5mm projecting above the height of the fire seal for optimal sealing performance.
Conclusion
Ensure the safety and integrity of your door assemblies with our high-performance fire and smoke seal. Designed for reliability and effectiveness, this product is a crucial component in fire safety measures.
