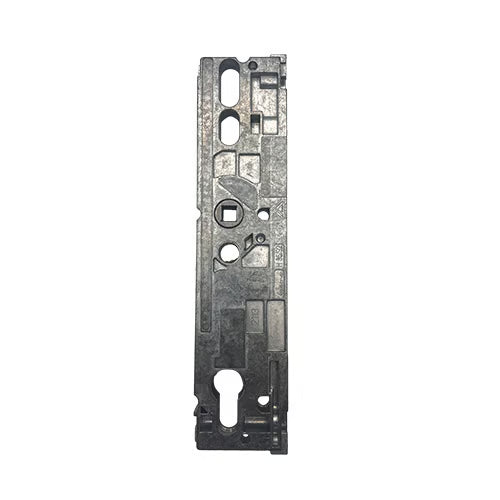

Product Overview: Roto H650 Passive Gearboxes
The Roto H650 passive gearboxes are designed to provide enhanced performance while maintaining the same dimensions as the H600 series. These gearboxes are specifically tailored for single spindle operation and are available with a 35mm backset.
Key Dimensions:
- Overall Height: 212mm
- Backset Measurement: 35mm (Note: Allow 2-3mm for the faceplate, resulting in a 32mm measurement when not fixed)
- Latch Height: 29mm
- Deadbolt Height: 30mm
- Distance Between Latch and Deadbolt: 58mm
-
Faceplate Screw Configuration:
- Top to Middle Screw: 70mm
- Middle to Bottom Screw: 125mm
Market Availability:
The H650 gearboxes cater to various European markets, offering backsets ranging from 25mm to 80mm, with the UK specifically featuring 35mm and 45mm options.
Associated Products:
We offer a comprehensive selection of products compatible with the Roto H650 gearboxes, including:
- Multipoint door locks
- Keeps
- Spindles
- Handles
- Accessories
Operational Features:
- Operation Type: Lift lever
- Main Gearbox Functionality: Combines latch and deadbolt mechanisms
- Spindle Size: Single 8mm
- Handing: Not handed, allowing for versatile installation

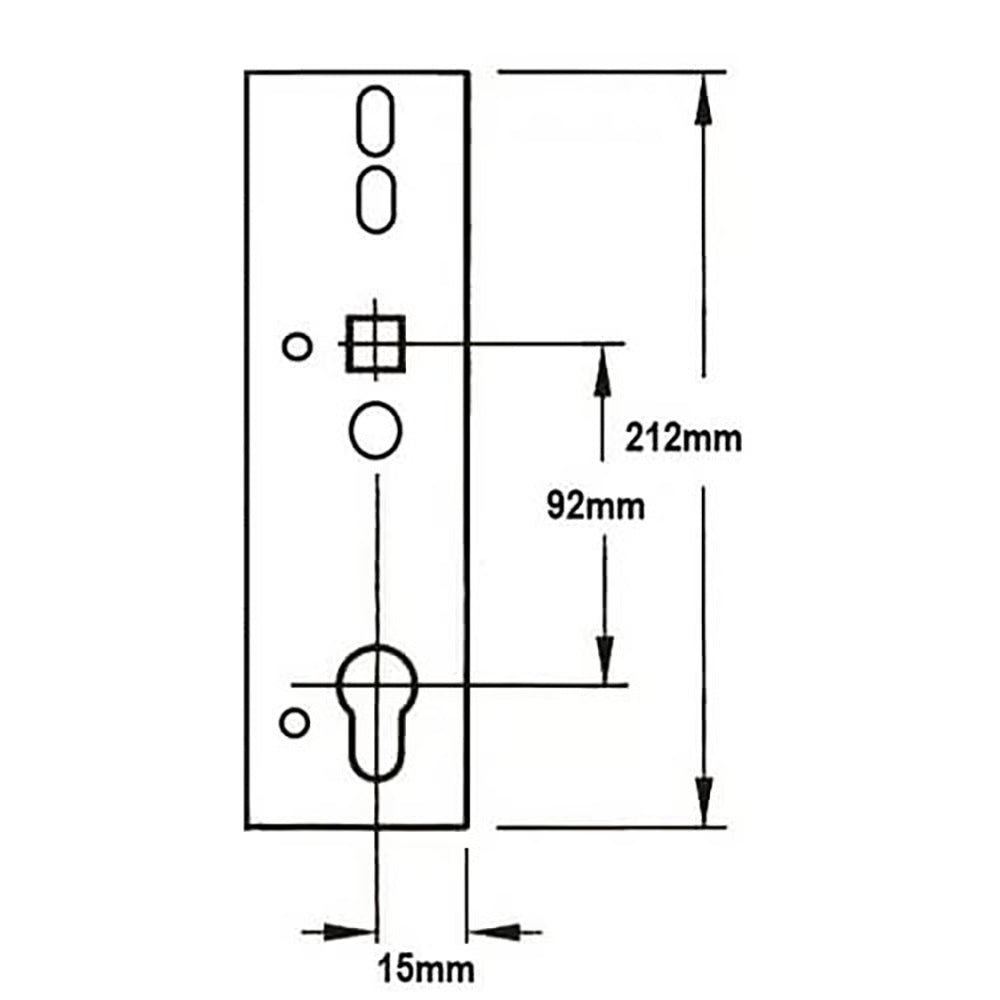

Product Specifications:
- Manufacturer: Roto
- Backset: 35mm (Refer to our guide on measuring the backset)
- Centres PZ: 92mm (Check our guide on measuring the centres)
- Case Height: 212mm
- Case Width: Backset + 15mm
- Copy/Genuine: Genuine product
- Cylinder Type: Euro
- Packaging: Supplied individually
For any further inquiries or assistance with installation, feel free to reach out!
