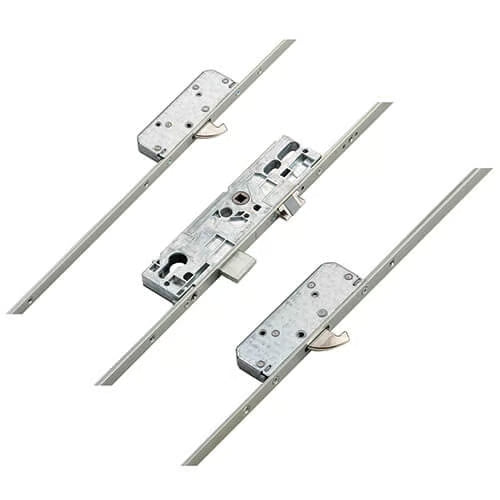

Product Overview: Roto H650 Multipoint Door Lock
The Roto H650 multipoint door lock is designed for enhanced security and ease of use, featuring 2 hooks, 1 deadbolt, and 1 latch. This lever-operated lock is manufactured in Germany and is available in various configurations, primarily for the European market.
Key Features:
-
Compatibility: The H650 replaces the older H600 model while maintaining the same locking point positions. However, if you're replacing older Roto locks (often referred to as "Mk2" or MVD locks), some adjustments to the door may be necessary due to differing locking point placements.
-
Locking Mechanism: The H650 features a single spindle operation and is equipped with a "whisper latch" for quiet closure. The hooks are designed to move upwards only, ensuring a secure fit.
-
Dimensions: The gearbox measures 212mm in height, with a backset of either 35mm or 45mm. The latch and deadbolt heights are 29mm and 30mm, respectively, with a distance of 58mm between them.
-
Installation: Gearboxes are secured to faceplates with three screws, with specific measurements for screw placement to ensure proper installation.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and the main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications:
- Manufacturer: Roto
- Backset Options: 35mm or 45mm
- Centres PZ: 92mm
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Operation: Lever-operated
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 2200mm
- Top Hook to Spindle: 730mm
- Bottom Hook to Spindle: 760mm
- Compatible Door Materials: UPVC, Aluminium, Timber, Composite
Additional Products: We offer a range of associated products for the Roto H650, including keeps, spindles, handles, and other accessories to ensure a complete solution for your door locking needs.
