H650 Genuine Multipoint Gearbox - Lift Lever

Product Overview: Roto H650 Gearboxes

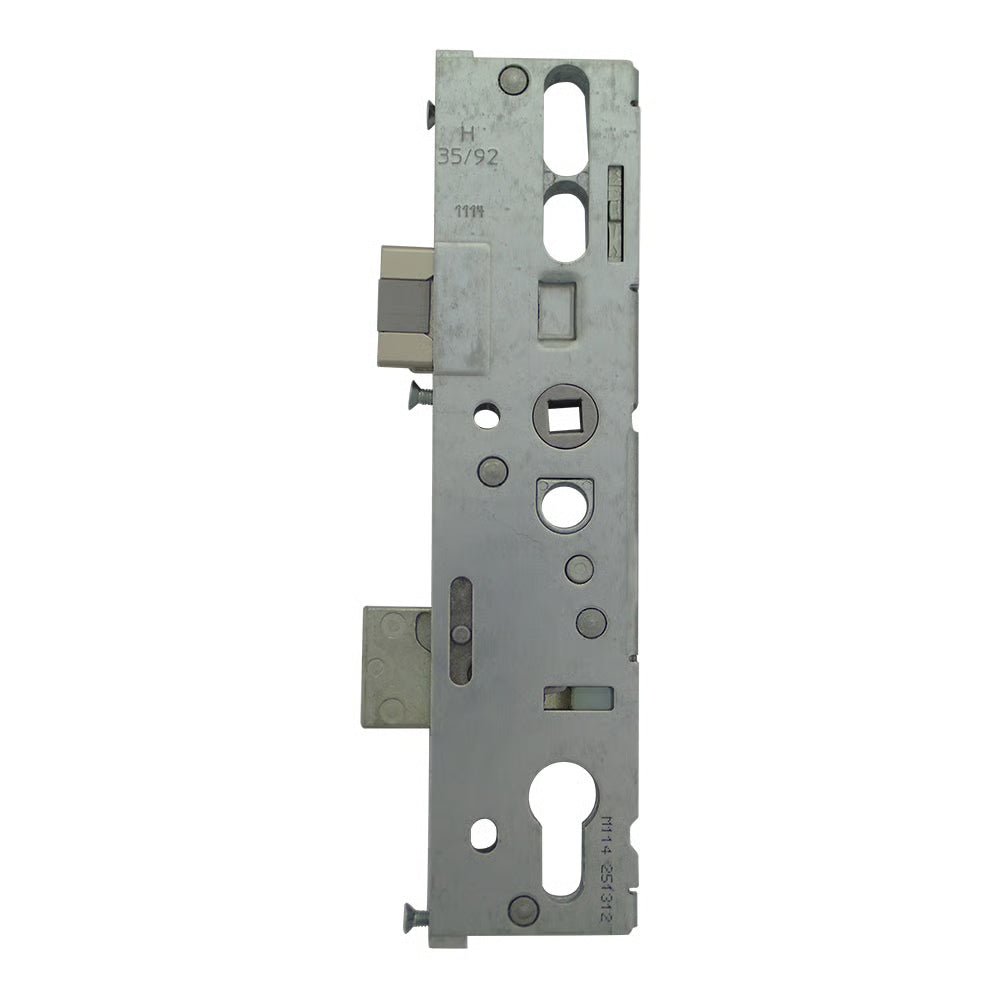

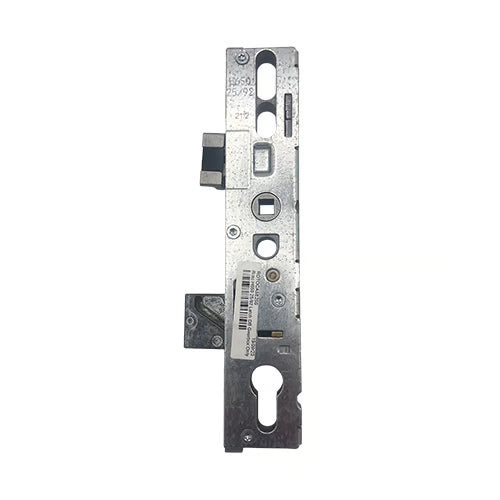

The Roto H650 gearboxes are an advanced version of the H600 series, designed with internal upgrades while maintaining the same dimensions. They are available in a variety of backsets: 25mm, 28mm, 35mm, 40mm, 45mm, 50mm, 55mm, and 65mm, featuring a single spindle operation.

Dimensions and Specifications

• Height: 212mm
• Backset Measurement: Backset + 15mm
• Latch Height: 29mm
• Deadbolt Height: 30mm
• Distance Between Latch and Deadbolt: 58mm
• Screw Configuration: Fitted to faceplates with three screws
  • Top to middle screw: 70mm
  • Middle to bottom screw: 125mm

Key Features

• Whisper Latch: The H650 gearboxes come standard with a "whisper latch," which includes a central plastic component to ensure quiet door closure. Note that some locks may have alternative latches without the plastic insert.

• Backset Variations: In European markets, backsets range from 25mm to 80mm, with 35mm and 45mm being common in the UK. When measuring the backset, remember to account for an additional 2-3mm for the faceplate.

• Associated Products: We offer a comprehensive range of products compatible with Roto H650 gearboxes, including multipoint door locks, keeps, spindles, handles, and various accessories.

Operation Instructions

• To Lock the Door:

  1. Lift the handle upwards to engage the locking points.
  2. Secure the locking points and main deadbolt (if applicable) by turning the key.

• To Unlock the Door:

  1. Turn the key to unlock the system.
  2. Push the handle downwards to disengage the locking points and retract the latch.

Latch Reversal Procedure

To reverse the latch, follow these steps:

1. Locate the small hole above the latch.
2. Insert a 2mm Allen key at a slight angle.
3. Push down on the Allen key while pulling the latch out.
4. Reverse the latch and reinsert it, ensuring it is pushed in completely and tested for proper connection.

Product Specifications

• Manufacturer: Roto
• Backset Options: 25mm, 28mm, 35mm, 40mm, 45mm, 50mm, 55mm, 65mm
• Centres PZ: 92mm
• Case Height: 212mm
• Case Width: Backset + 15mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle: Single 8mm
• Operation: Lift Lever
• Packaging: Supplied in singles

For any further inquiries or assistance, feel free to reach out!
