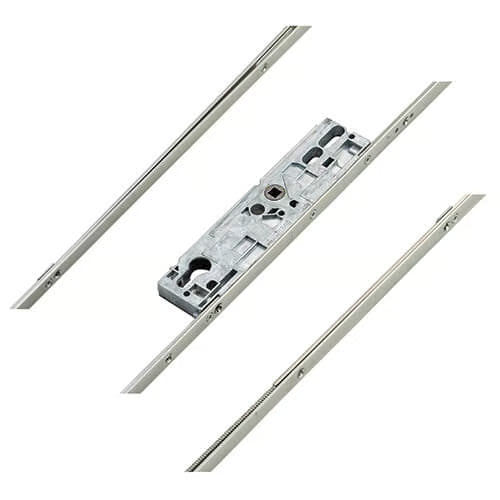

H600 Lift Lever Passive Lock

Product Overview: Roto H650 Multipoint Door Lock

The Roto H650 multipoint door lock is designed specifically for the passive door in a pair of French doors, offering a reliable and secure locking solution without locking points. This innovative lock is the latest addition to Roto's lineup, showcasing advanced features and a sleek design.

Key Features:

• Latest Design: The H650 is Roto's newest lever-operated lock, available in various configurations, primarily sold in Europe. It is manufactured in Germany, ensuring high-quality standards.

• Compatibility: This lock replaces the H600 model, maintaining the same locking point positions. However, if you're replacing older Roto locks (often referred to as "Mk2" or MVD locks), some adjustments may be necessary due to differing locking point placements.

• Gearbox Specifications: The H650 gearbox is dimensionally identical to the H600 series but includes internal upgrades for enhanced performance. It is available in 35mm or 45mm backsets with single spindle operation.

• Whisper Latch: Standard on the H650 is the "whisper latch," designed with a central plastic component to ensure quiet door closure. Note that some older models may not feature this insert.

Operation Instructions:

• To Lock:

  1. Lift the handle upwards to engage the locking points.
  2. Turn the key to lock the locking points and main deadbolt (if applicable).

• To Unlock:

  1. Turn the key to unlock the system.
  2. Push the handle downwards to disengage the locking points and retract the latch.

Latch Reversal: To reverse the latch, insert an Allen key into the small hole above the latch, push through to release, and then reinsert the latch in the desired position.

Product Specifications:

• Manufacturer: Roto
• Backset: Available in 35mm or 45mm (allow 2-3mm for the faceplate)
• Centres PZ: 92mm
• Faceplate: Selectable options
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Operation: Lift lever
• Spindle: Single 8mm
• Handing: Non-handed
• Height: 1865mm
• Door Material Compatibility: UPVC, Aluminium, Timber, Composite

Associated Products: We offer a comprehensive range of accessories for the Roto H650, including keeps, spindles, handles, and more to ensure you have everything you need for a complete installation.

For any further inquiries or assistance, feel free to reach out!
