Genuine Multipoint Gearbox Old Style Case A - Lift Lever or Split Spindle

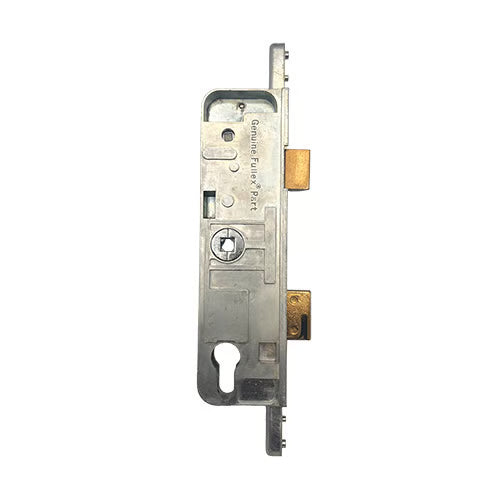

Product Overview: Fullex Genuine A Gearbox

The Fullex Genuine A Gearbox is designed for older Fullex locks featuring a split spindle function. With a backset of 39mm, this gearbox is compatible with locks that have wider faceplates, ensuring a secure fit and reliable operation.

Specifications:

• Backset: 39mm
• Measurement: 35/68
• Obsolete Cases: B-G (Centre cases B, E & G are no longer available)

Operation Modes:

• Lift Lever
• Split Spindle

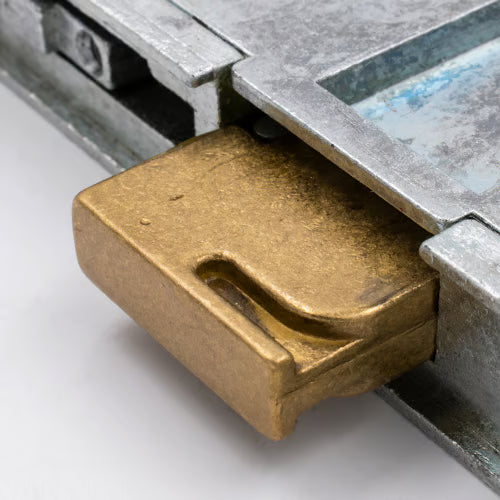

Latch Reversal Instructions:

To reverse the latch, simply undo the screw in the latch, remove it, reverse its position, and reinsert it before replacing the screw.

Nightlatch Reversal:

The lock is initially set as a lift lever function. To convert it to a split spindle function, follow these steps:

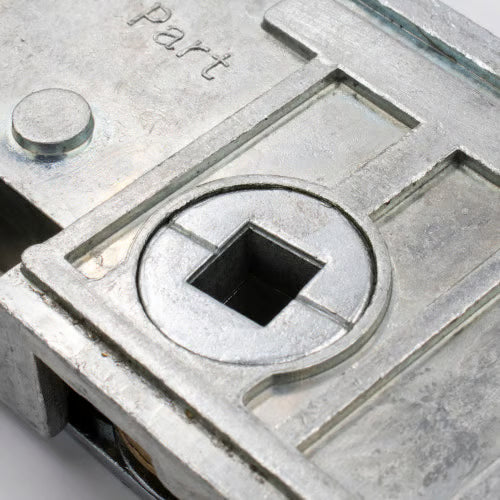

1. Locate the travel pin surrounding the spindle hole.
2. Simultaneously lift the outside handle up and the inside handle down.
3. Listen for the crunching noise indicating the pin has broken.

Once the travel pin is broken, the split spindle function is activated. Ensure the spindles are positioned correctly: the longer spindle goes on the inside, overlapping two parts, while the shorter spindle fits on the outside, engaging only with the first part.

Locking Procedure:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage additional locking points.
3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

Unlocking Procedure:

1. Unlock the system by turning the key.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

This comprehensive guide ensures you can effectively operate and maintain your Fullex Genuine A Gearbox for optimal security and functionality.

Product Specification

Manufacturer: Fullex

Backset: 39mm: Select from drop-down

How do I measure the backset?To measure the backset, you need to determine the distance from the edge of the door to the center of the keyhole or the cylinder. This measurement is crucial for ensuring that the lock fits properly within the door.

Centres PZ: 68mmHow do I measure the centres?To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle hole. This ensures that both components align correctly for optimal functionality.

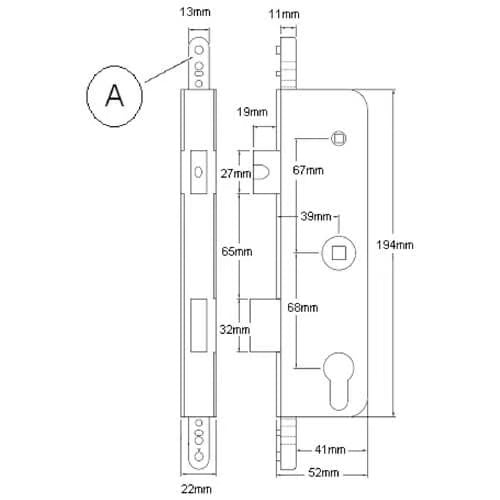

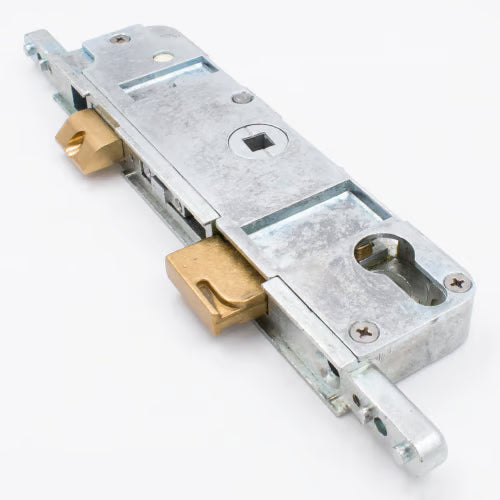

Case Height: 194mm

Case Width: 52mm

Copy/Genuine: Genuine

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & deadbolt

Spindle: Split 8mm

Operation: Lift Lever or Split Spindle NightlatchWhat is the operation?The operation refers to how the lock functions. The Fullex Genuine A Gearbox can operate in two modes: as a lift lever, where you lift the handle to engage the lock, or as a split spindle nightlatch, allowing for independent operation of the outside and inside handles.

Packaging: Supplied in singles
