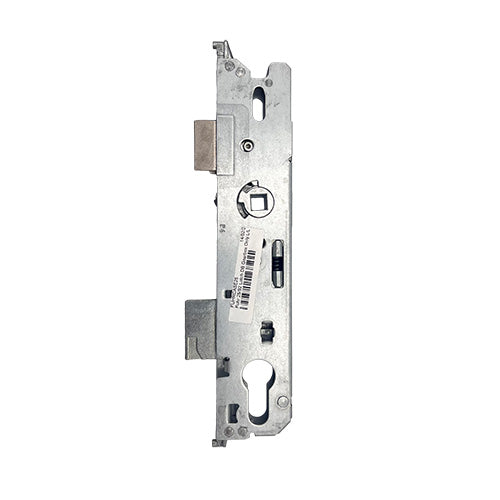

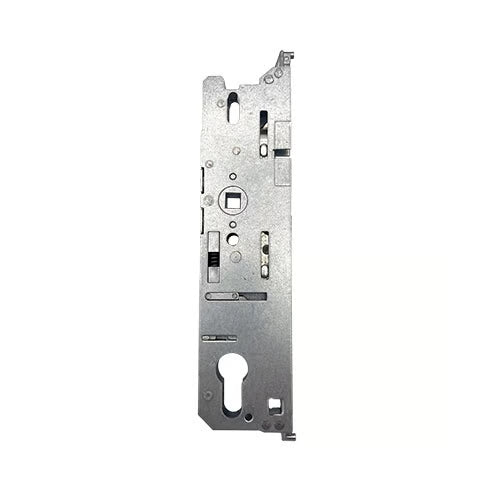

Genuine Multipoint Gearbox - Lift Lever or Split Spindle

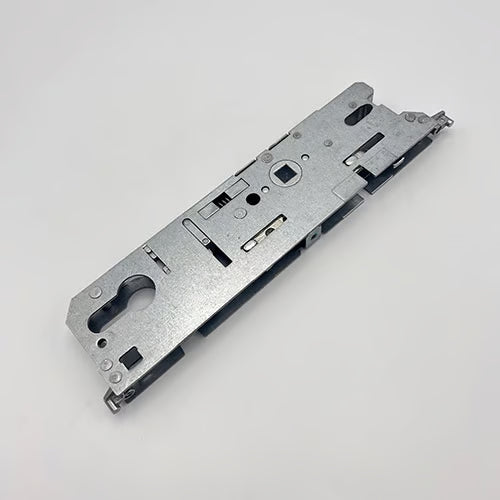

Product Overview: Fuhr Multipoint Door Lock Gearboxes

Fuhr multipoint door lock gearboxes are designed for enhanced security and durability. Key features include:

• Deadbolt Throw: 20mm for standard locks; 14mm for 25mm and 30mm backset locks.
• Gearbox Dimensions: 220mm in length, with a width of 18mm.
• Latch and Deadbolt Height: Both components measure 31mm high, with a 61mm distance between the latch bottom and deadbolt top.
• Screw Fixation: Gearboxes are secured to faceplates using three screws, with specific distances between them: 91mm from the top screw to the middle screw, and 108mm from the middle to the bottom screw.

Enhanced Locking Mechanism

Fuhr locks come equipped with a ball bearing and spring pre-fitted, providing a more positive locking feel. This feature is crucial for ensuring smooth operation. Be cautious of replacement gearboxes that may lack this essential component; all Duffells' replacement Fuhr gearboxes include the ball bearing and spring for seamless installation.

Latch Compatibility

When replacing an existing Fuhr multipoint lock or gearbox, be aware of potential latch height differences. Older models feature a 28mm high latch, while newer versions have a 33mm high latch. If the original latch is intact, it can be reused by removing it from the old gearbox and installing it in the new one.

Special Considerations for Bifold Doors

Pay attention to 30mm gearboxes used in bifold doors, particularly Smarts Aluminium doors, as they are not interchangeable with the standard 856 gearbox.

Associated Products

We offer a comprehensive range of products compatible with Fuhr 856 - Lift Lever gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

Manufacturer: Fuhr

Backset: 30mm, 35mm, 45mm,
How to Measure the Backset:
To measure the backset, take a ruler or measuring tape and measure the distance from the edge of the door to the center of the keyhole or cylinder. This measurement will give you the backset size required for your lock.

Centres PZ: 92mm
How to Measure the Centres:
To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle spindle hole. This is typically done by placing the measuring tape or ruler across the door and ensuring you measure accurately to the center points.

Case Height: 194mm

Case Width: Backset + 15mm

Copy/Genuine: Genuine

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & deadbolt

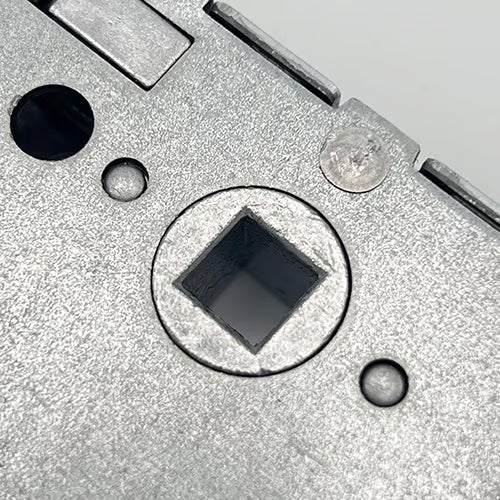

Spindle: Single 8mm

Operation: Lift Lever
What is the Operation?
The lift lever operation involves lifting the handle upwards to engage the locking mechanism. This action secures the locking points and the main deadbolt, ensuring the door is locked effectively.

Packaging: Supplied in singles
