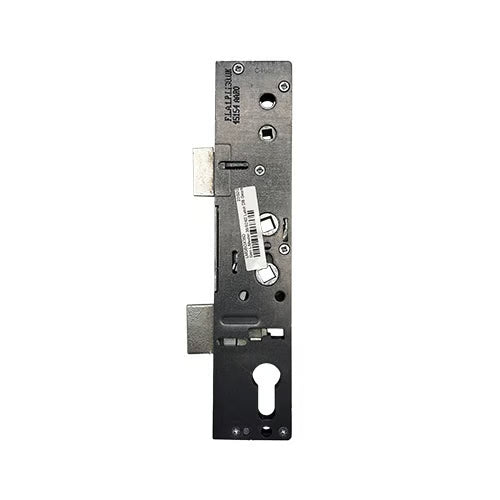

Product Overview: Lockmaster Gearboxes
Lockmaster gearboxes are designed for durability and versatility, available in both 35mm and 45mm backsets. These gearboxes are perfect for replacing existing Lockmaster multipoint locks, ensuring a seamless fit and reliable operation.
Key Features:
-
Backset Options: Choose between 35mm or 45mm backsets to suit your door specifications.
-
Spindle Variants: Available in double spindle (92/62PZ) and single spindle (92PZ only) configurations. Double spindle versions require sprung handles and can function as either a lift lever or double spindle night latch.
-
Construction: Each gearbox features a latch and deadbolt mechanism, with the 45mm versions utilizing a 35mm case enhanced with an extended latch and deadbolt, plus a 10mm packer piece for added stability.
-
Compatibility: Designed specifically for Lockmaster locks, these gearboxes are manufactured to the highest standards, ensuring compatibility and performance.
Specifications:
-
Dimensions: Gearboxes measure 228mm in height, with a width of backset + 16mm. The latch and deadbolt each measure 30mm high, with a 65mm distance between them.
-
Screw Holes: Fitted to faceplates with three screw holes, the top to middle and middle to bottom screw holes each measure 109mm apart.
-
Latch Reversal: Easily reverse the latch by undoing the screw, allowing for flexible installation.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Secure the locking points and main deadbolt (if applicable) by turning the key.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Additional Information:
-
Associated Products: We offer a range of complementary products for Lockmaster Standard gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.
-
Packaging: Each gearbox is supplied individually for convenience.
For any further inquiries or assistance with installation, please refer to our detailed guides or contact our support team.
