Genuine Multipoint Gearbox - Lift Lever or Double Spindle

Product Overview

Introducing the Avantis genuine gearboxes, designed for enhanced security and versatility. These gearboxes come equipped with a robust deadbolt positioned above the latch, ensuring your doors are secure and reliable.

Key Features

• Backset Options: Available in 35mm or 45mm backsets to fit various door types.

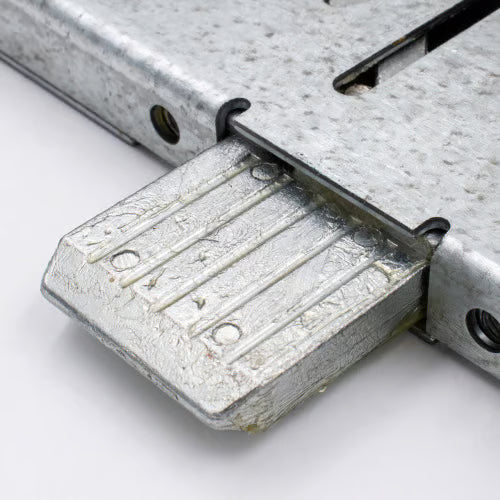

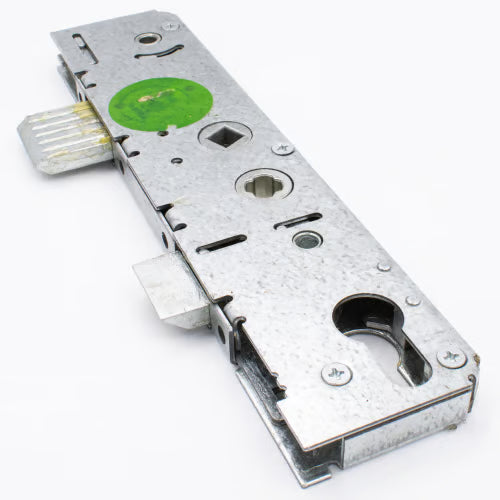

• Distinctive Deadbolt Design: The unique grooved deadbolt measures 30mm in height and extends 25mm when engaged, providing an extra layer of security.

• Latch Dimensions: The distance from the bottom of the deadbolt to the top of the latch is 60mm, with the latch itself measuring 24mm high.

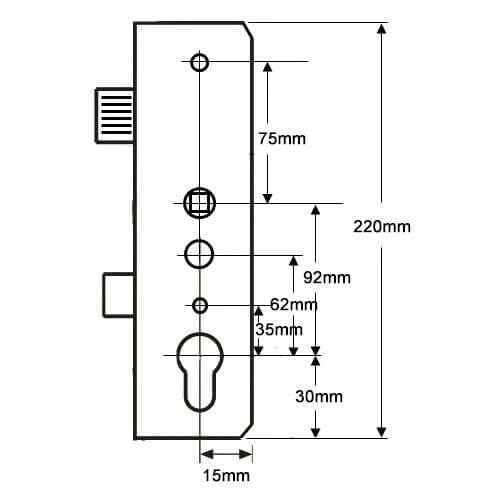

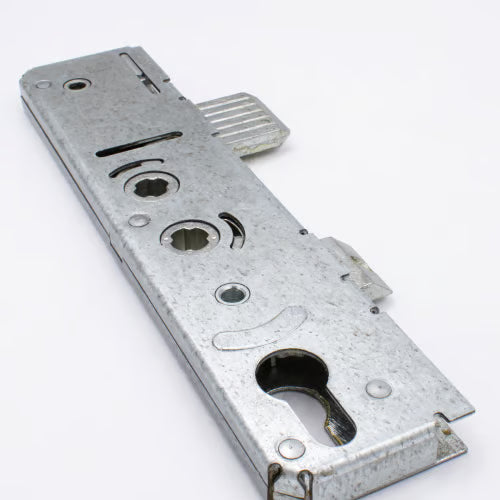

• Double Spindle Configuration: These gearboxes feature a double spindle design with centers at 92mm and 62mm, allowing for flexible installation options.

• Versatile Functionality: Ideal for both double spindle night latch functionality (commonly used on front doors) and standard lift lever operation (typically used on back doors) by utilizing the top spindle only.

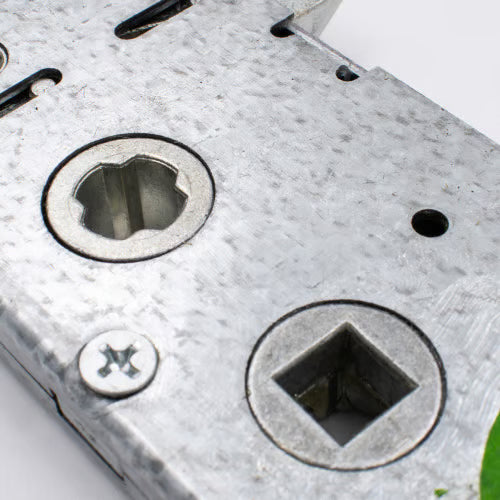

• Cross-Shaped Spindles: The spindles are uniquely designed with a cross shape but are compatible with standard 8mm spindles, ensuring ease of installation.

Applications

Avantis gearboxes are perfect for enhancing the security of residential and commercial properties, providing peace of mind with their innovative design and reliable performance. Whether you're upgrading your front door or installing a new back door, these gearboxes offer the functionality and security you need.

Conclusion

Choose Avantis gearboxes for a blend of security, functionality, and ease of installation. Elevate your door hardware with our unique designs that cater to your specific needs.

Product Specification

To measure the backset, follow these steps:

1. Identify the Door Edge: Locate the edge of the door where the lock will be installed.

2. Measure from the Edge: Use a tape measure to find the distance from the edge of the door to the center of the hole where the lock cylinder will be placed. This distance is your backset measurement.

3. Choose the Right Size: Ensure that the measurement is either 35mm or 45mm, as these are the available options for Avantis gearboxes.

To measure the centres (PZ), do the following:

1. Locate the Cylinder Hole: Identify the hole where the euro cylinder will be installed.

2. Measure from the Cylinder Hole to the Latch: Measure the distance from the center of the cylinder hole to the center of the latch. This distance should be either 92mm or 62mm, depending on your specific installation.

Regarding the operation of the Avantis gearbox:

• Lift Lever Operation: This allows you to lift the lever to engage the latch, commonly used for back doors.

• Double Spindle Nightlatch Operation: This function enables the use of a night latch mechanism, providing added security for front doors. You can utilize the top spindle only for this operation.

If you need further assistance or detailed instructions, please refer to the product documentation provided with your Avantis gearboxes.
