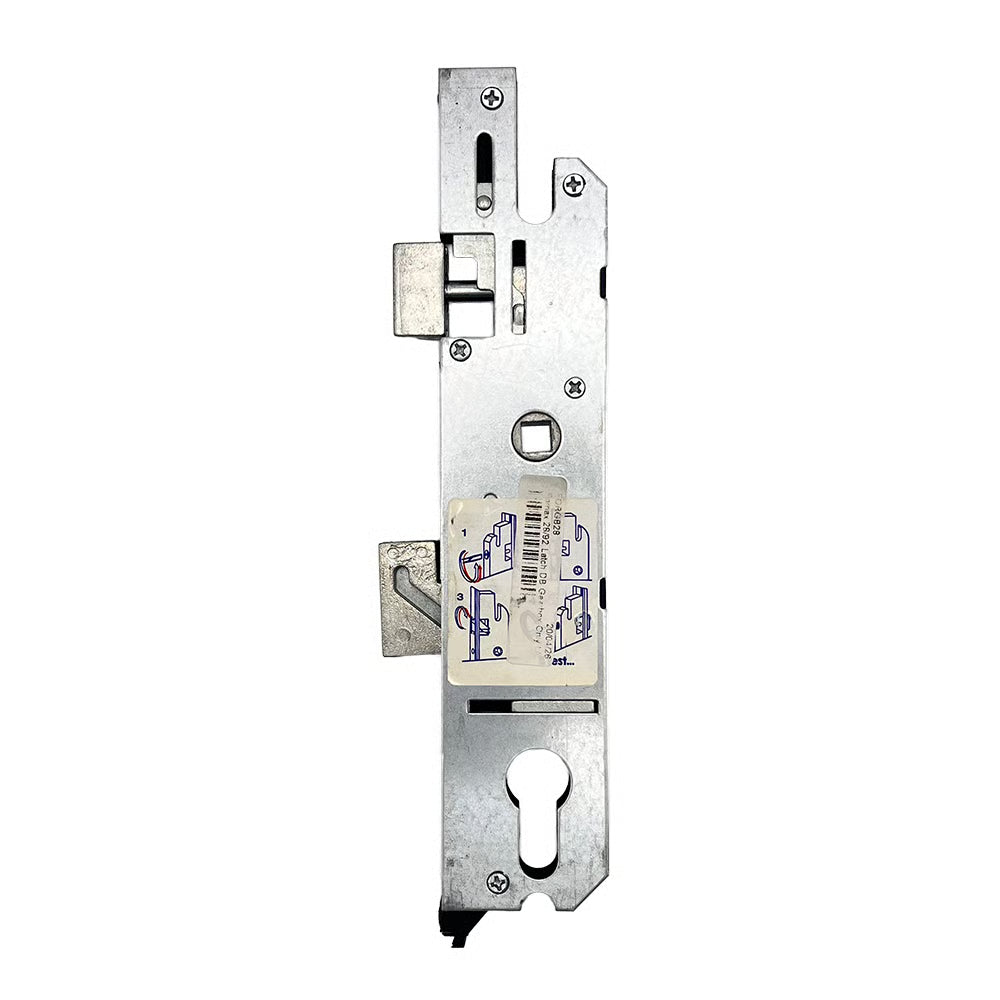

The Fornax Genuine Multipoint Gearbox is designed specifically for Fornax multipoint locks, ensuring optimal compatibility and performance. This gearbox features a lift lever operation, integrating both a latch and a deadbolt within its main assembly.
Dimensions and Specifications
- Height: 224mm
- Width: Backset + 19mm
- Latch Height: 24mm
- Deadbolt Height: 31mm
- Distance Between Latch and Deadbolt: 53mm
- Backset Options: 28mm, 35mm, 45mm
- PZ Centres: 92mm
- Spindle Size: Single 8mm
The gearbox is secured to the faceplate with three screws, spaced 110mm apart (top to middle and middle to bottom). The latch can be easily reversed by twisting it into the desired position.
Operation
To operate the gearbox, lift the handle upwards to engage the locking points, then turn the key to lock both the locking points and the main deadbolt (if applicable). To unlock, simply turn the key to disengage the lock, followed by pushing the handle downwards to retract the latch and disengage the locking points.
Key Features
- Genuine Fornax gearbox for multipoint locks
- Lift lever operation
- Case height: 224mm
- Case width: Backset + 19mm
- Backset options: 28mm, 35mm, 45mm
- PZ centres: 92mm
- Spindle size: Single 8mm
- Main gearbox includes latch (24mm high) and deadbolt (31mm high)
- Distance between bottom of latch and top of deadbolt: 53mm
- Three fixing screws spaced 110mm apart (top to middle, middle to bottom)
- Latch reversal by twisting
Product Specification
- Manufacturer: Fornax
- Centres PZ: 92mm
- Operation: Lift Lever
- Spindle Size: 8mm
- Main Gearbox: Latch and deadbolt
- Height: 224mm
This gearbox is an excellent choice for enhancing security and functionality in your multipoint locking system.
