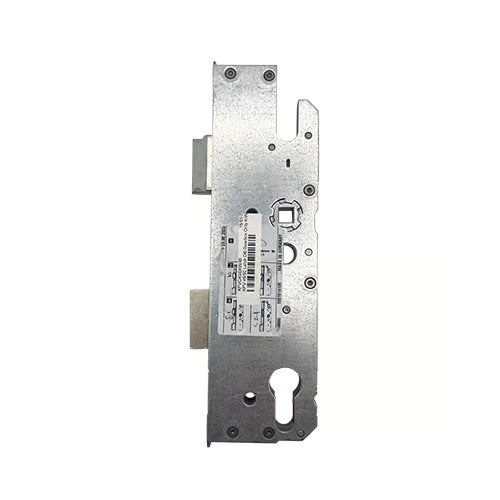

Genuine Multipoint Gearbox - Key Wind

KFV Multipoint Door Lock Gearbox Overview

KFV multipoint door lock gearboxes are designed for durability and security, featuring a single spindle configuration with 92mm centres. These gearboxes are specifically tailored for newer KFV locks, ensuring compatibility and ease of installation.

Key Specifications:

• Overall Height: 210mm
• Bolt Throw: 21mm
• Distance from Latch to Deadbolt: 56mm
• Distance from Spindle to Top of Case: 85mm
• Backset Options: 35mm, 40mm, 45mm, or 55mm (Note: Allow 2-3mm for the faceplate when measuring backset)
• Case Width: Backset + 14mm
• Cylinder Type: Euro
• Operation: Key Wind
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle Size: Single 8mm
• Packaging: Supplied in singles

Installation Notes:

KFV cases are riveted onto strips and require drilling and re-riveting for installation. It's important to note that older KFV locks have different connectors and cannot be replaced with newer gearboxes. When replacing gearboxes, ensure that the model is compatible, as early KFV models may have different rivet spacing.

Latch Reversal Instructions:

Depending on the manufacturing date, the latch can be reversed using one of the following methods:

1. Method 1:

   • Push in the latch and undo the screw at the back of the lock case.
   • Remove the latch, reverse it, and reinsert.

2. Method 2:

   • Push in the latch and undo the screw on the side of the lock case.
   • Remove the latch, reverse it, and reinsert.

3. Method 3:

   • Pull down the serrated button at the rear of the case while simultaneously pulling out and reversing the latch. Note that some serrated buttons may be secured with a tiny travel pin, requiring a screwdriver to push down hard to break the pin.

Operation Instructions:

• To Lock the Door:

  1. Close the door to automatically engage the latch.
  2. Turn the key to throw and engage the locking points.

• To Unlock the Door:

  1. Turn the key to unlock by unwinding the locking points.
  2. A further quarter turn of the key will retract the latch.

Associated Products:

We offer a comprehensive range of products for KFV Key Wind gearboxes, including multipoint door locks, keeps, spindles, handles, and various accessories to enhance your locking system.

For any further inquiries or assistance, feel free to reach out!
