Description
Product Information

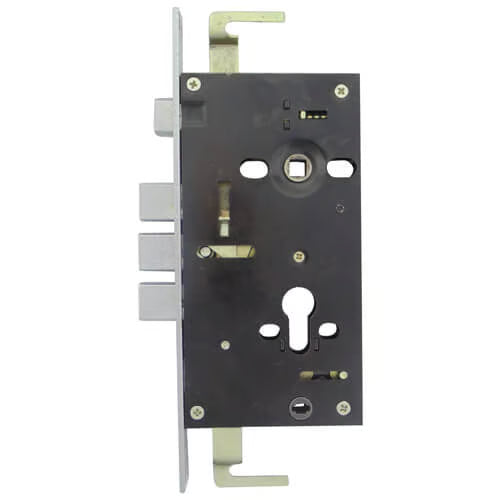

The Hooply multipoint gearbox is designed for robust security and ease of use. With faceplate dimensions of 240mm x 24mm, centers of 68mm, and a backset of 60mm, this lock case is ideal for site containers and security steel doors. It features fingerbolts, and for those interested in a standard deadbolt version, please refer to HOO002.
Operation: Key Wind
Latch Reversal: Depending on the date of manufacture, the latch can be reversed using one of the following methods:
-
Method 1:
- Undo the screw on top of the lock case.
- Push the silver button up to pop out the latch.
- Twist and reinsert the screw.
-
Method 2:
- Insert a screwdriver or similar tool into the round hole at the back edge of the lock case behind the latch.
- Push the latch bolt forward until it clears the faceplate, allowing for rotation.
- Spin the bolt 180 degrees, then remove the screwdriver. The bolt will return to its position.
Play
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Lock the locking points and main deadbolt (if present) by turning the key.
To Unlock the Door:
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points and retract the latch.

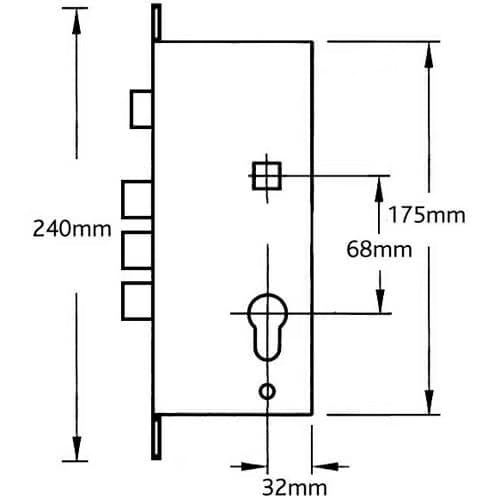

Product Specification
- Manufacturer: Hooply
- Backset: Select from drop-down - How do I measure the backset?
- Centres PZ: 68mm - How do I measure the centres?
- Case Height: 175mm
- Case Width: 92mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Single 8mm
- Operation: Key Wind - What is the operation?
- Packaging: Supplied in singles
